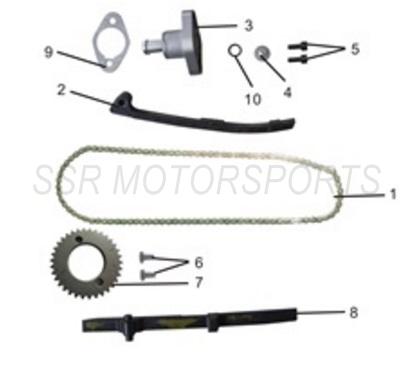

Timing Chain
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02223-09-00 | CAM CHAIN | 98L | 1 | Pc. | $39.00 |
| 2 | A02224-09-00 | CAM CHAIN GUIDE | 1 | Pc. | $18.00 | |
| 3 | A02225-09-00 | CAM CHAIN TENSIONER | 1 | Pc. | $11.00 | |
| 4 | A00008-20-02 | SCREW | M6X6 | 1 | Pc. | $1.50 |
| 5 | A00011-19-02 | ALLEN BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 6 | A00015-19-03 | HEX BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 7 | A02226-09-00 | CAM SHAFT SPROCKET | 1 | Pc. | $11.00 | |
| 8 | A02227-09-00 | FRONT CAM CHAIN GUIDE | 1 | Pc. | $18.00 | |
| 9 | A00220-13-00 | CAM CHAIN TENTIONER GASKET | 1 | Pc. | $2.50 | |
| 10 | A00050-27-00 | O-RING | 10X1.9 | 1 | Pc. | $1.50 |
