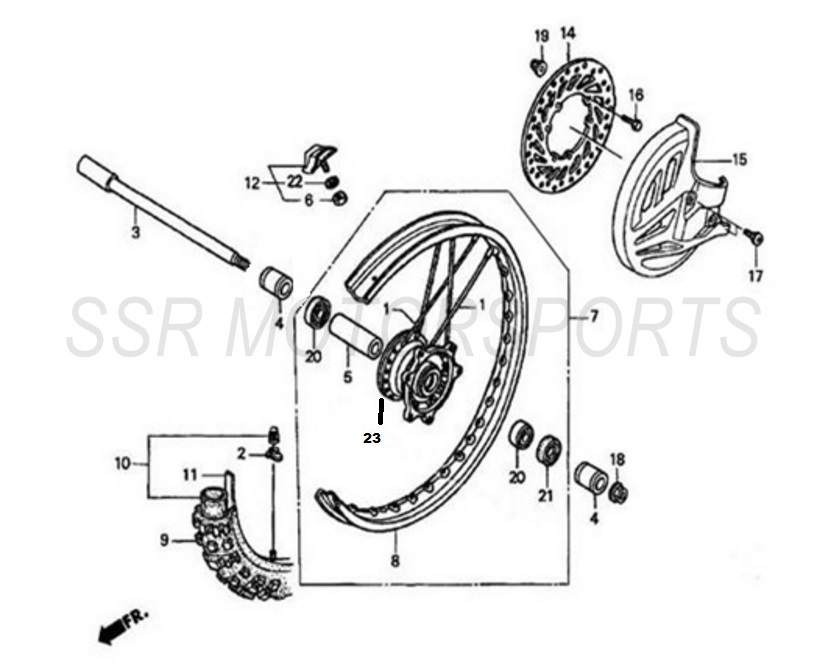

Front Wheel
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00054-18-00 | FRONT SPOKE W/ NIPPLE 21 | $3.50 | 36 |
| 2 | A00055-18-00 | VALVE STEM RUBBER HOLDER | $6.10 | 1 |
| 3 | A00056-18-00 | FRONT WHEEL AXLE | $38.50 | 1 |
| 4 | A00057-18-00 | FRONT LEFT WHEEL SPACER | $15.80 | 1 |
| 4-1 | A00126-18-00 | FRONT RIGHT WHEEL SPACER | $15.80 | 1 |
| 5 | A00058-18-00 | FRONT WHEEL BEARING SPACER | $33.30 | 1 |
| 6 | A00002-22-01 | NUT M8 | $2.00 | 1 |
| 7 | A00059-18-01 | FRONT WHEEL ASSY | $554.80 | 1 |
| 8 | A00060-18-02 | FRONT RIM BLACK | $234.50 | 1 |
| 9 | A00061-18-00 | FRONT TIRE | $150.50 | 1 |
| 10 | A00064-18-00 | INNERTUBE 3.00-21 | $19.30 | 1 |
| 11 | A00046-18-00 | RIM STRIP | $8.00 | 1 |
| 12 | A00065-18-00 | RIM LOCK | $28.00 | 1 |
| 14 | A00556-04-00 | FRONT BRAKE ROTOR | $59.50 | 1 |
| 15 | A00054-02-01 | FRONT BRAKE ROTOR COVER | $35.00 | 1 |
| 16 | A00006-19-01 | FLANGE BOLT M6X20 | $2.00 | 6 |
| 17 | A00042-19-03 | BUTTON HEAD ALLEN BOLT | $2.00 | 2 |
| 18 | A00007-22-03 | FLANGE LOCKNUT M16 | $4.40 | 1 |
| 19 | A00002-22-34 | FLANGE LOCKNUT M6 | $2.00 | 6 |
| 20 | A00038-28-00 | FRONT WHEEL BEARING | $35.00 | 2 |
| 21 | A00011-26-00 | SEAL | $3.50 | 2 |
| 22 | A00023-21-01 | WASHER | $2.00 | 1 |
| 23 | A00519-18-00 | FRONT HUB | $352.50 | 1 |
