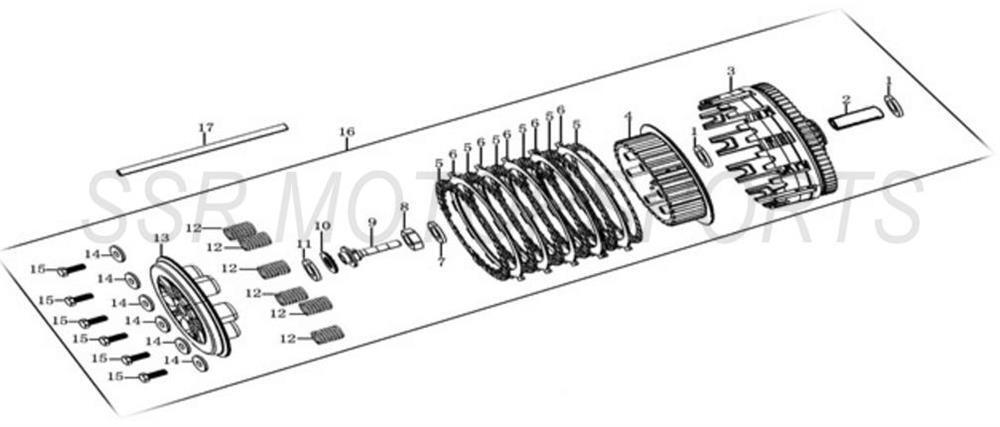

Clutch
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00037-21-01 | WASHER 20.2X1.8X34 | $2.00 | 2 |
| 2 | A00324-09-00 | CLUTCH SLEEVE | $4.40 | 1 |
| 3 | A00325-09-00 | CLUTCH OUTER HUB 22T / 64T | $162.80 | 1 |
| 4 | A00326-09-00 | CLUTCH INNER HUB | $68.30 | 1 |
| 5 | A00327-09-00 | CLUTCH STEEL PLATE | $12.30 | 5 |
| 6 | A00328-09-00 | CLUTCH FRICTION PLATE | $31.50 | 6 |
| 7 | A00036-21-01 | WASHER 16.5X2X27 | $2.00 | 1 |
| 8 | A00015-22-01 | NUT M16X1 | $4.40 | 1 |
| 9 | A00329-09-00 | INNER CLUTCH PUSH ROD | $8.80 | 1 |
| 10 | A00036-28-00 | BEARING AXK1528 | $14.00 | 1 |
| 11 | A00035-21-01 | WASHER 15X1X28 | $2.00 | 1 |
| 12 | A00331-09-00 | CLUTCH SPRING | $3.50 | 5 |
| 13 | A00332-09-00 | CLUTCH PRESSURE PLATE | $45.50 | 1 |
| 14 | A00034-21-01 | WASHER 5.2X2X17 | $2.00 | 6 |
| 15 | A00018-19-03 | HEX BOLT M5x25 | $2.00 | 6 |
| 16 | A00333-09-00 | CLUTCH ASSY | $376.30 | 1 |
| 17 | A00334-09-00 | CLUTCH PUSH ROD | $14.00 | 1 |
