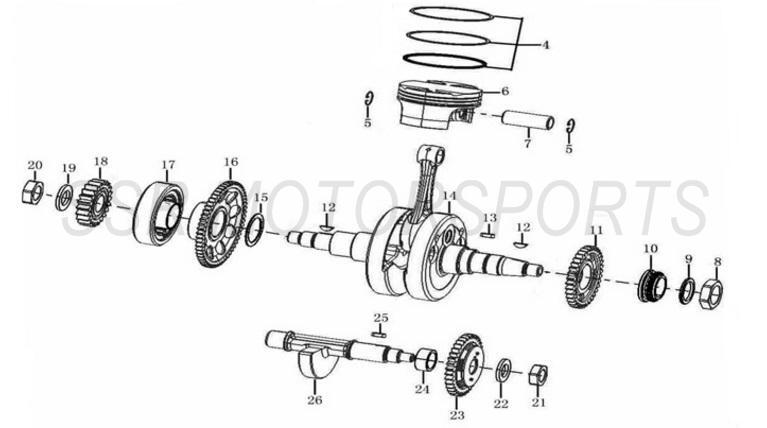

Crankshaft
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 4 | A02963-09-00 | PISTON RING SET | $52.50 | 1 |
| 5 | A02964-09-00 | PISTON PIN CIRCLIP | $2.00 | 2 |
| 6 | A02965-09-00 | PISTON | $63.00 | 1 |
| 7 | A02966-09-00 | PISTON PIN | $8.80 | 1 |
| 8 | A00016-22-01 | NUT M24x1.0 | $8.00 | 1 |
| 9 | A00031-21-01 | WASHER 24.2X2.5X32 | $2.50 | 1 |
| 10 | A00387-09-00 | TIMING CHAIN SPROCKET | $26.30 | 1 |
| 11 | A00388-09-00 | DRIVING GEAR 36T | $63.00 | 1 |
| 12 | A00389-09-00 | WOODRUFF KEY | $2.50 | 2 |
| 13 | A00390-09-00 | SQUARE PIN | $2.60 | 1 |
| 14 | A00391-09-00 | CRANKSHAFT ASSY | $210.00 | 1 |
| 15 | A00030-21-01 | WASHER 30.2X1X40 | $2.50 | 1 |
| 16 | A02979-09-00 | STARTER GEAR 58T | $82.30 | 1 |
| 17 | A00176-28-00 | STARTER CLUTCH W/ BEARING | $59.50 | 1 |
| 18 | A00394-09-00 | PRIMARY DRIVE GEAR 22T | $63.00 | 1 |
| 19 | A00029-21-01 | WASHER 18.2X3X31 | $2.50 | 1 |
| 20 | A00026-22-01 | NUT M18 | $8.00 | 1 |
| 21 | A00027-22-01 | LOCKNUT M16 | $4.40 | 1 |
| 22 | A00396-09-00 | DISHED WASHER 16.5X2X27 | $2.00 | 1 |
| 23 | A02980-09-00 | DRIVEN GEAR | $82.30 | 1 |
| 24 | A00398-09-00 | CRANKSHAFT COLLAR | $8.00 | 1 |
| 25 | A00399-09-00 | WOODRUFF KEY 4X4X13 | $2.60 | 1 |
| 26 | A00400-09-00 | BALANCER SHAFT | $96.30 | 1 |
| 27 | A00177-28-00 | NEEDLE BEARING | $8.80 | 1 |
