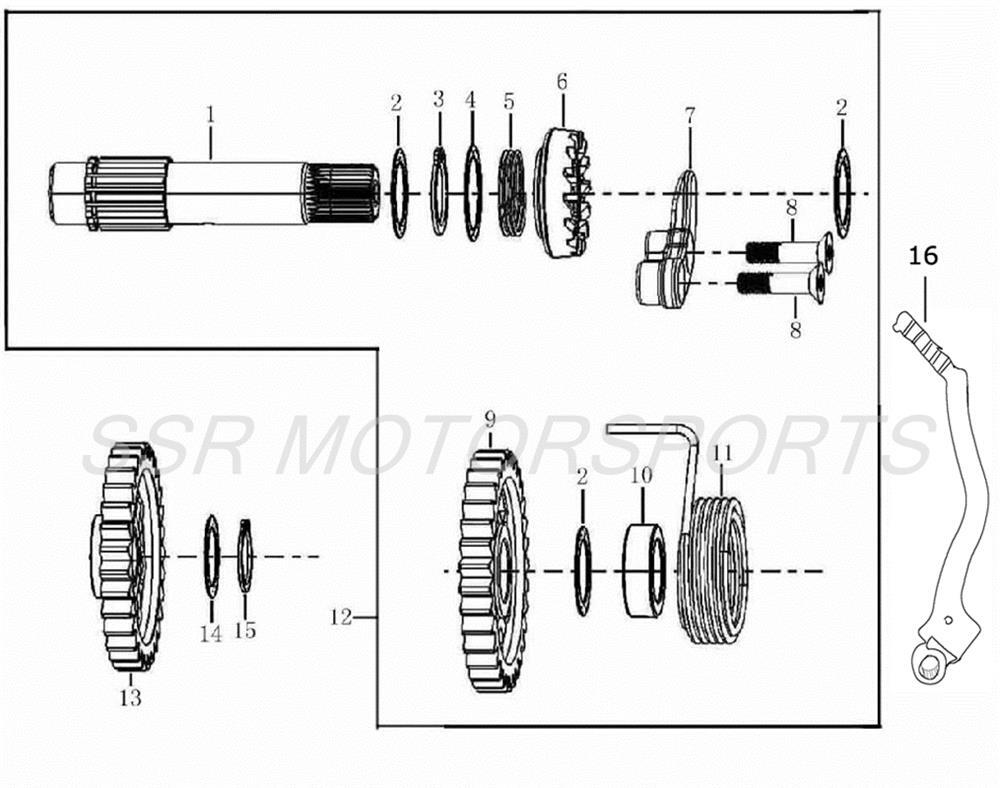

Kickstarter
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00401-09-00 | KICKSTART SHAFT | $52.50 | 1 |
| 2 | A00028-21-01 | WASHER 18.5X0.5X26 | $2.50 | 3 |
| 3 | A00010-24-07 | CIRCLIP 21 | $2.00 | 1 |
| 4 | A00027-21-01 | WASHER 21.7X0.5X29.5 | $2.50 | 1 |
| 5 | A00403-09-00 | KICK STARTER SPRING | $2.60 | 1 |
| 6 | A00404-09-00 | STARTING RATCHET | $59.50 | 1 |
| 7 | A00405-09-00 | GUIDE PLATE | $8.80 | 1 |
| 8 | A00002-20-05 | CS SCREW M6X25 | $2.00 | 2 |
| 9 | A00406-09-00 | KICK STARTER GEAR 33T | $68.30 | 1 |
| 10 | A00407-09-00 | KICK START COLLAR | $8.80 | 1 |
| 11 | A00408-09-00 | RETURN SPRING | $4.40 | 1 |
| 12 | A00409-09-00 | KICKSTARTER GEAR ASSY 33T | $187.30 | 1 |
| 13 | A00410-09-00 | IDLER GEAR 31T | $28.00 | 1 |
| 14 | A00026-21-01 | WASHER 17.1X0.5X26 | $2.00 | 1 |
| 15 | A00001-24-07 | CIRCLIP 17 | $2.00 | 1 |
| 16 | A00548-05-00 | KICKSTARTER LEVER | $99.00 | 1 |
