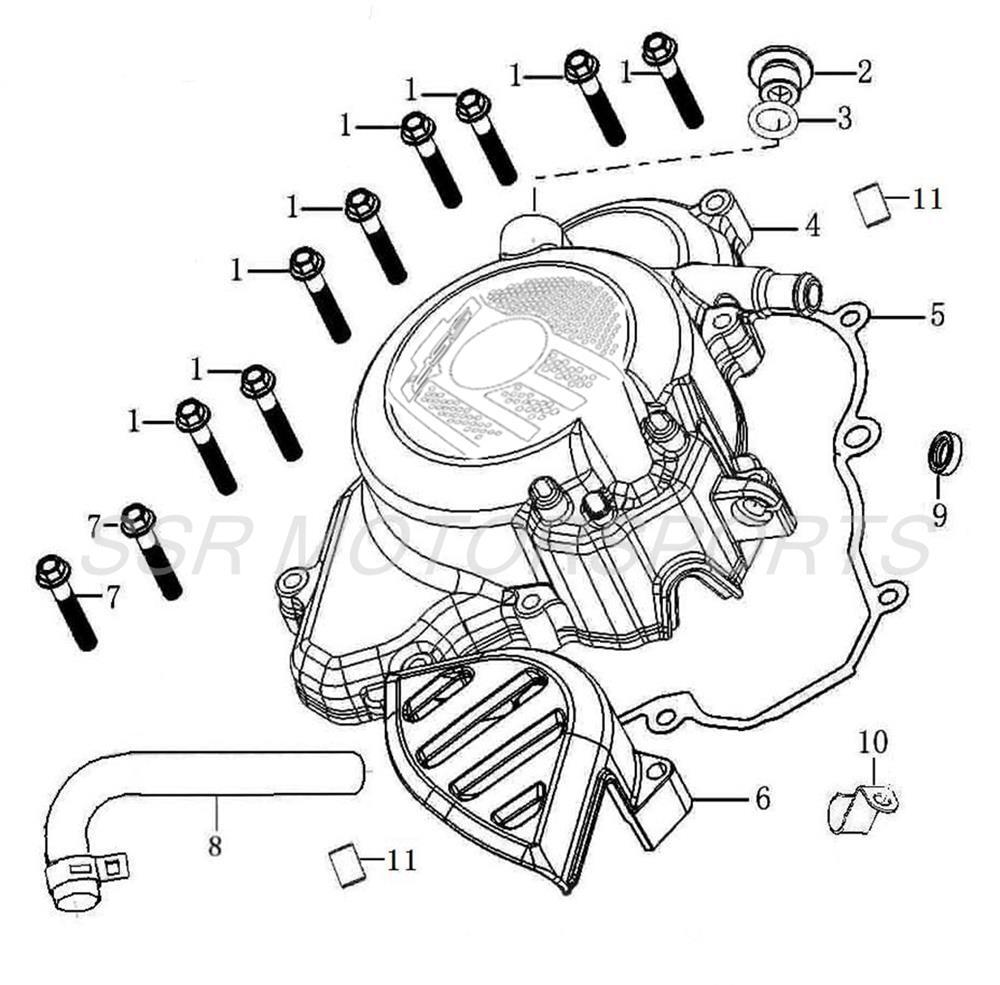

Left Crankcase Cover
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00425-19-08 | CASE FLANGE BOLT M6X35 | $2.00 | 8 |
| 2 | A00315-09-00 | TIMING PLUG M14X1 | $8.00 | 1 |
| 3 | A00024-27-00 | O-RING 11.8X2.6 | $2.50 | 1 |
| 4 | A02961-09-00 | STATOR COVER | $92.80 | 1 |
| 5 | A00303-13-00 | STATOR COVER GASKET | $42.00 | 1 |
| 6 | A00318-09-00 | FRONT SPROCKET COVER | $21.00 | 1 |
| 7 | A00001-19-01 | FLANGE BOLT M6X30 | $2.00 | 2 |
| 8 | A00319-09-00 | BREATHER TUBE | $10.50 | 1 |
| 9 | A00016-26-00 | OIL SEAL 10X18X6 | $12.30 | 1 |
| 10 | A00321-09-00 | CARB DRAIN/VENT RETAINER | $2.60 | 1 |
| 11 | A00010-23-00 | DOWEL PIN 9X13 | $2.00 | 2 |
