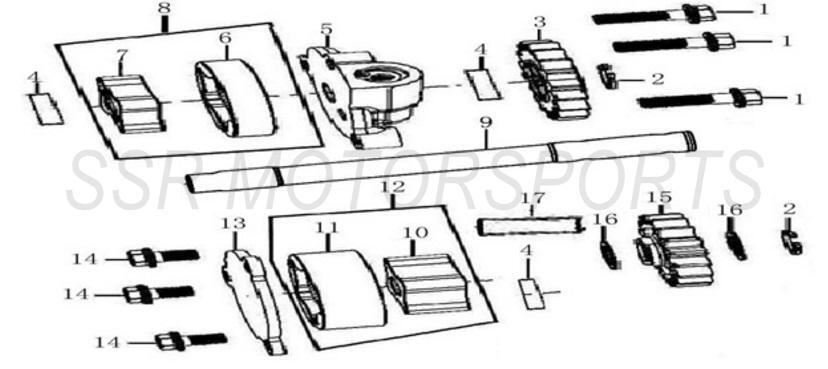

Oil Pump
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00067-19-01 | FLANGE BOLT M5X18 | $2.00 | 3 |
| 2 | A00004-24-07 | CIRCLIP 10 | $2.50 | 2 |
| 3 | A00336-09-00 | OIL PUMP GEAR 18T | $14.00 | 1 |
| 4 | A00003-25-02 | PIN 4X15.8 | $2.00 | 3 |
| 5 | A00337-09-00 | OIL PUMP COVER | $47.30 | 1 |
| 6 | A00338-09-00 | OIL PUMP A OUTER ROTOR | $14.00 | 1 |
| 7 | A00339-09-00 | OIL PUMP A INNER ROTOR | $12.30 | 1 |
| 8 | A00340-09-00 | OIL PUMP ROTOR SET A | $31.50 | 1 |
| 9 | A00341-09-00 | OIL PUMP SHAFT | $21.00 | 1 |
| 10 | A00342-09-00 | OIL PUMP B INNER ROTOR | $12.30 | 1 |
| 11 | A00343-09-00 | OIL PUMP B OUTER ROTOR | $14.00 | 1 |
| 12 | A00344-09-00 | OIL PUMP ROTOR SET B | $49.00 | 1 |
| 13 | A00345-09-00 | OIL PUMP COVER | $15.80 | 1 |
| 14 | A00037-19-01 | FLANGE BOLT M5X10 | $2.00 | 3 |
| 15 | A00346-09-00 | OIL PUMP GEAR 17T | $12.30 | 1 |
| 16 | A00033-21-01 | WASHER 10.2X0.5X15 | $2.00 | 2 |
| 17 | A00347-09-00 | OIL PUMP GEAR SHAFT | $8.80 | 1 |
