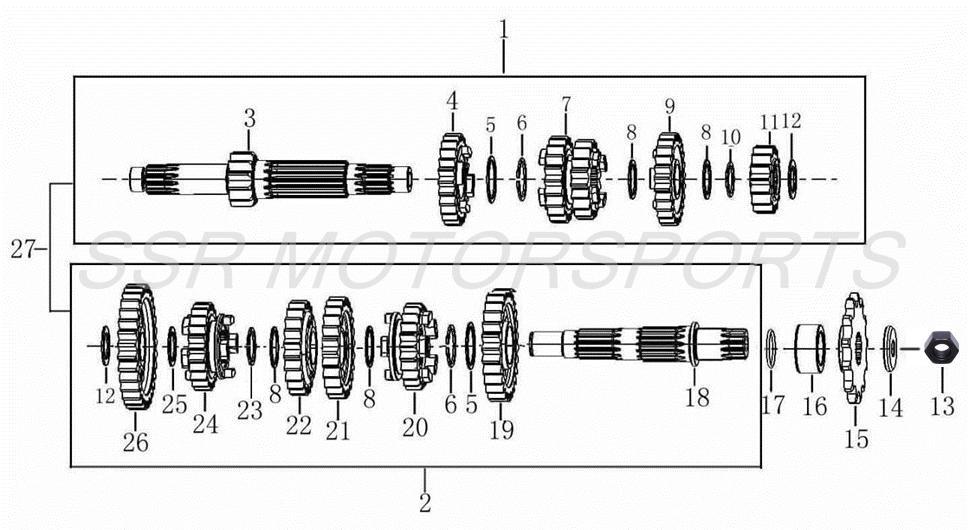

Transmission
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00041-17-00 | MAINSHAFT ASSY | $224.00 | 1 |
| 2 | A00042-17-00 | COUNTERSHAFT ASSY BOLT VERSION | $295.80 | 1 |
| 3 | A00043-17-00 | MAINSHAFT M-1 / 12T | $56.00 | 1 |
| 4 | A00044-17-00 | GEAR M-5 / 24T | $47.30 | 1 |
| 5 | A00045-17-00 | WASHER 25.1X1.0X30 | $2.50 | 2 |
| 6 | A00046-17-00 | CIRCLIP 23X1X29 | $2.00 | 2 |
| 7 | A00047-17-00 | GEAR M-3 & 4 / 18T & 20T | $47.30 | 1 |
| 8 | A00048-17-00 | WASHER 20.1X1.0X25 | $2.50 | 4 |
| 9 | A00049-17-00 | GEAR M-6 / 25T | $47.30 | 1 |
| 10 | A00050-17-00 | CIRCLIP | $2.00 | 1 |
| 11 | A00051-17-00 | GEAR M-2 / 15T | $47.30 | 1 |
| 12 | A00052-17-00 | WASHER 17.1X1.0X26 | $2.50 | 2 |
| 15 | A00346-07-00 | COUNTERSHAFT SPROCKET 13T | $35.00 | 1 |
| 16 | A00055-17-00 | BUSHING | $14.00 | 1 |
| 17 | A00028-27-00 | O-RING 21X2 | $2.60 | 1 |
| 18 | A00057-17-00 | COUNTERSHAFT BOLT VERSION | $52.50 | 1 |
| 19 | A00058-17-00 | GEAR C-2 / 27T | $47.30 | 1 |
| 20 | A00059-17-00 | GEAR C-6 / 22T | $47.30 | 1 |
| 21 | A00060-17-00 | GEAR C-3 / 24T | $47.30 | 1 |
| 22 | A00061-17-00 | GEAR C-4 / 22T | $47.30 | 1 |
| 23 | A00007-24-07 | CIRCLIP 22 | $2.50 | 1 |
| 24 | A00063-17-00 | GEAR C-5 / 23T | $47.30 | 1 |
| 25 | A00064-17-00 | WASHER 19X1X26 | $2.50 | 1 |
| 26 | A00065-17-00 | GEAR C-1 / 31T | $47.30 | 1 |
| 27 | A00066-17-00 | TRANSMISSION ASSY | $437.50 | 1 |
