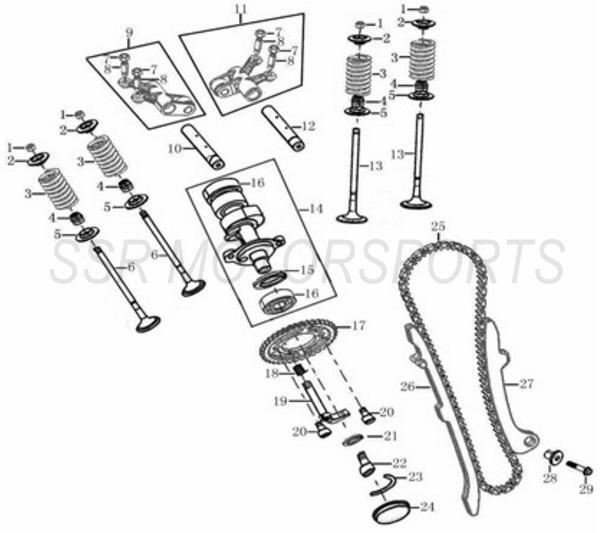

Valves
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00277-09-00 | COLLET | $3.50 | 8 |
| 2 | A00278-09-00 | UPPER VALVE SPRING SEAT | $6.10 | 4 |
| 3 | A00279-09-00 | VALVE SPRING | $8.80 | 4 |
| 4 | A00280-09-00 | VALVE STEM SEAL | $15.80 | 4 |
| 5 | A00281-09-00 | LOWER VALVE SPRING RETAINER | $6.10 | 4 |
| 6 | A00282-09-00 | INTAKE VALVE | $38.50 | 2 |
| 7 | A00283-09-00 | VALVE ADJUSTMENT NUT | $4.40 | 4 |
| 8 | A00284-09-00 | VALVE CLEARANCE ADJUSTMENT SCREW | $4.40 | 4 |
| 9 | A00285-09-00 | INTAKE ROCKER ARM ASSY | $106.80 | 1 |
| 10 | A00286-09-00 | INTAKE ROCKER SHAFT | $8.80 | 1 |
| 11 | A00287-09-00 | EXHAUST ROCKER ARM ASSY | $106.80 | 1 |
| 12 | A00288-09-00 | EXHAUST ROCKER SHAFT | $8.80 | 1 |
| 13 | A00289-09-00 | EXHAUST VALVE | $40.30 | 2 |
| 14 | A00290-09-00 | CAMSHAFT ASSY | $224.00 | 1 |
| 15 | A00096-21-01 | WASHER | $2.60 | 1 |
| 16 | A00037-28-00 | BEARING 6201C3 | $26.30 | 2 |
| 17 | A00292-09-00 | CAM TIMING SPROCKET 38T | $38.50 | 1 |
| 18 | A00293-09-00 | DECOMPRESSION SPRING | $2.50 | 1 |
| 19 | A00294-09-00 | DECOMPRESSION ARM | $62.00 | 1 |
| 20 | A00010-19-02 | ALLEN BOLT M6X10 | $2.00 | 2 |
| 21 | A00025-21-01 | WASHER 6.5X1.5X18 | $2.00 | 1 |
| 22 | A00011-19-02 | ALLEN BOLT M6X16 | $2.00 | 1 |
| 23 | A00295-09-00 | CAMSHAFT STOPPER PLATE | $3.50 | 1 |
| 24 | A00296-09-00 | CYLINDER HEAD SEAL | $12.30 | 1 |
| 25 | A00297-09-00 | TIMING CHAIN | $45.50 | 1 |
| 26 | A00298-09-00 | FRONT CAM CHAIN SLIDER | $26.30 | 1 |
| 27 | A00299-09-00 | REAR CAM CHAIN SLIDER | $26.30 | 1 |
| 28 | A00300-09-00 | BUSHING | $8.00 | 1 |
| 29 | A00018-19-03 | HEX BOLT M5X25 | $2.00 | 1 |
