| NO. |
PART NUMBER |
DESCRIPTION |
SPECIFICATION |
QTY. |
UNIT |
RETAIL |

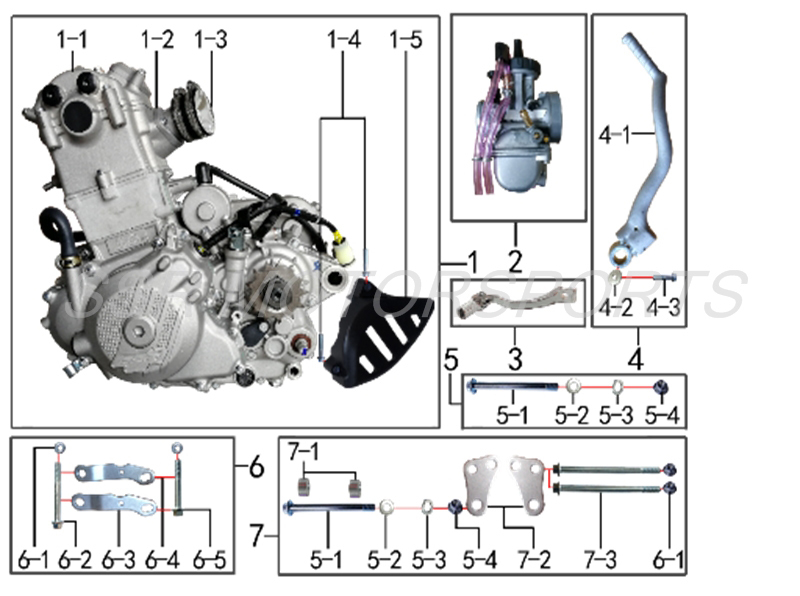

| 1-1 |
A02949-09-00 |
COMPLETE ENGINE |
520-13T |
1 |
Assy. |
$1,999.00 |
| 1-2 |
A00323-14-00 |
INTAKE MANIFOLD FLANGE |
|
1 |
Pc. |
$13.00 |
| 1-3 |
A00273-09-00 |
HOSE CLAMP |
40-55 |
2 |
Pcs. |
$13.00 |
| 1-3 |
A00100-06-00 |
HOSE CLAMP |
35-51 |
2 |
Pcs. |
$13.00 |
| 1-4 |
A00423-19-08 |
CASE FLANGE BOLT |
M6X30 |
2 |
Pcs. |
$1.50 |
| 1-5 |
A02950-09-00 |
COUNTERSHAFT SPROCKET COVER |
|
1 |
Pc. |
$18.00 |
| 2 |
A00409-12-00 |
CARBURETOR |
PWK35 |
1 |
Assy. |
$218.00 |
| 2 |
A00415-12-00 |
CARBURETOR |
GEN. 2 - FCR CARB |
1 |
Assy. |
$364.00 |
| 2-1 |
A00101-01-00 |
JET KIT |
162/165 42/45 FOR PWK CARB |
1 |
Kit |
$39.00 |
| 2-1 |
A00117-01-00 |
JET KIT |
140/145 40/42 FOR FCR CARB |
1 |
Kit |
$39.00 |
| 3 |
A00547-05-00 |
GEARSHIFT LEVER |
|
1 |
Pc. |
$33.00 |
| 4-1 |
A00548-05-00 |
KICKSTARTER LEVER |
|
1 |
Pc. |
$89.00 |
| 4-2 |
A00549-05-00 |
WASHER |
8X22X3 |
1 |
Pc. |
$1.50 |
| 4-3 |
A00015-19-01 |
FLANGE BOLT |
M8X20 |
1 |
Pc. |
$1.50 |
| 5-1 |
A00463-19-01 |
FLANGE BOLT |
M10X127 |
2 |
Pcs. |
$3.50 |
| 5-2 |
A00002-21-01 |
WASHER |
10X18X1.5 |
2 |
Pcs. |
$1.50 |
| 5-3 |
A00004-21-02 |
LOCK WASHER |
M10 |
2 |
Pcs. |
$1.50 |
| 5-4 |
A00004-22-34 |
FLANGE LOCKNUT |
M10 |
2 |
Pcs. |
$2.00 |
| 6-1 |
A00100-22-34 |
FLANGE LOCKNUT |
M8 |
4 |
Pcs. |
$1.50 |
| 6-2 |
A00090-19-01 |
FLANGE BOLT |
M8X70 |
1 |
Pc. |
$2.00 |
| 6-3 |
A00560-11-00 |
LEFT ENGINE BRACKET |
|
1 |
Pc. |
$8.00 |
| 6-4 |
A00561-11-00 |
RIGHT ENGINE BRACKET |
|
1 |
Pc. |
$8.00 |
| 6-5 |
A00102-19-01 |
FLANGE BOLT |
M8X60 |
1 |
Pc. |
$2.00 |
| 7-1 |
A00315-11-00 |
SPACER |
10X20X10 |
2 |
Pcs. |
$2.50 |
| 7-2 |
A00562-11-00 |
ENGINE BRACKET C |
|
2 |
Pcs. |
$8.00 |
| 7-3 |
A00464-19-01 |
FLANGE BOLT |
M8X122 |
2 |
Pcs. |
$3.50 |
