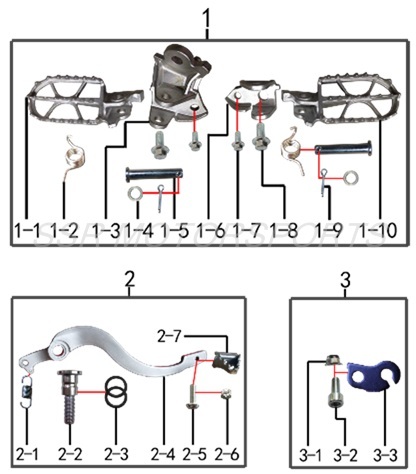

Footpegs & Components
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1-1 | A00550-05-00 | LEFT FOOTPEG | $42.00 | 1 |
| 1-2 | A00551-05-00 | LEFT FOOTPEG SPRING | $2.00 | 1 |
| 1-2 | A00551-05-01 | RIGHT FOOTPEG SPRING | $2.00 | 1 |
| 1-3 | A00552-05-00 | LEFT FOOTPEG BRACKET | $14.00 | 1 |
| 1-4 | A00273-21-01 | WASHER 10X16X1 | $2.00 | 2 |
| 1-5 | A00553-05-00 | FOOTPEG PIN | $2.00 | 2 |
| 1-6 | A00554-05-00 | RIGHT FOOTPEG BRACKET | $12.30 | 1 |
| 1-7 | A00015-19-01 | FLANGE BOLT M8X20 S12 | $2.00 | 2 |
| 1-8 | A00465-19-01 | FLANGE BOLT M12X25 | $2.50 | 2 |
| 1-9 | A00008-25-01 | COTTER PIN 2.5X16 | $2.00 | 3 |
| 1-10 | A00555-05-00 | RIGHT FOOTPEG | $42.00 | 1 |
| 2-1 | A00556-05-00 | REAR BRAKE PEDAL SPRING | $2.00 | 1 |
| 2-2 | A00467-19-07 | REAR BRAKE LEVER PIVOT BOLT | $2.50 | 1 |
| 2-3 | A00153-27-00 | O-RING 15X20X2.5 | $2.00 | 2 |
| 2-4 | A00557-05-00 | REAR BRAKE PEDAL | $56.00 | 1 |
| 2-5 | A00126-19-19 | BUTTON HEAD ALLEN BOLT M6X20 | $2.00 | 1 |
| 2-6 | A00005-22-04 | FLANGE LOCKNUT M6 | $2.00 | 1 |
| 2-7 | A00293-05-00 | BRAKE PEDAL TIP | $8.00 | 1 |
| 3-1 | A00100-22-34 | FLANGE LOCKNUT M8 | $2.00 | 1 |
| 3-2 | A00251-19-02 | ALLEN BOLT M8X20 | $2.00 | 1 |
| 3-3 | A02951-09-00 | CLUTCH CABLE BRACKET | $4.40 | 1 |
