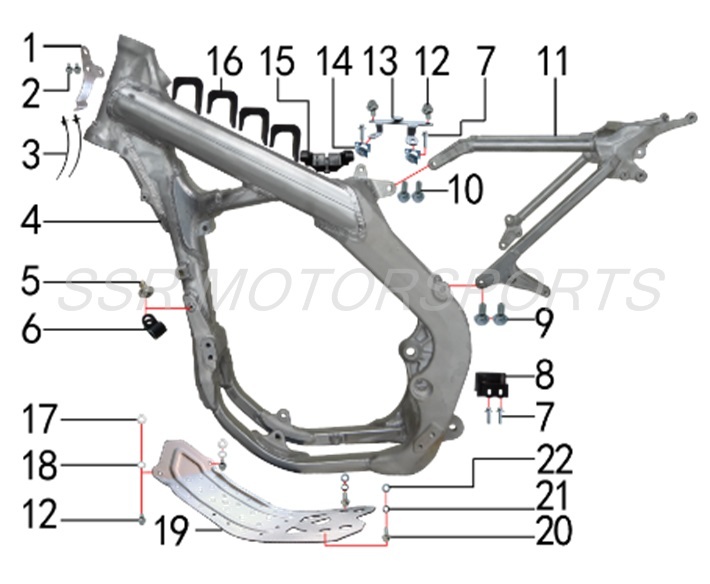

Frame
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00563-11-00 | WIRE HARNESS RETAINER | $8.00 | 1 |
| 2 | A00461-19-01 | FLANGE BOLT M6X8 | $2.00 | 2 |
| 3 | A00034-24-01 | ANCHORED ZIP-TIE 5X168 | $2.00 | 2 |
| 4 | A00564-11-00 | FRAME *OVERSIZE/WEIGHT* | $1,550.00 | 1 |
| 5 | A00010-19-09 | PAN HEAD ALLEN BOLT M6X10 | $2.00 | 1 |
| 6 | A00031-22-05 | CABLE RETAINER | $2.00 | 1 |
| 7 | A00002-19-01 | FLANGE BOLT M6X16 | $2.00 | 4 |
| 8 | A00565-11-00 | CHAIN SLIDER | $8.80 | 1 |
| 9 | A00098-19-01 | FLANGE BOLT M10X25 | $2.00 | 2 |
| 10 | A00007-19-01 | FLANGE BOLT M8X25 | $2.00 | 2 |
| 11 | A00566-11-00 | SUBFRAME | $210.00 | 1 |
| 12 | A00445-19-08 | CASE FLANGE BOLT M6X12 | $2.00 | 4 |
| 13 | A00567-11-00 | REAR FUEL TANK BRACKET | $4.40 | 1 |
| 14 | A00001-22-05 | CLIP NUT M6 | $2.00 | 2 |
| 15 | A00569-11-00 | REAR FUEL TANK DAMPER | $8.80 | 1 |
| 16 | A00570-11-00 | SIDE FUEL TANK DAMPER | $8.00 | 4 |
| 17 | A00104-21-01 | WASHER 6X18X1.5 | $2.00 | 2 |
| 18 | A00002-21-02 | LOCK WASHER M6 | $2.00 | 2 |
| 19 | A00568-11-00 | SKID PLATE | $82.30 | 1 |
| 20 | A00015-19-01 | FLANGE BOLT M8X20 S12 | $2.00 | 2 |
| 21 | A00001-21-02 | LOCK WASHER 8X13X2 | $2.00 | 2 |
| 22 | A00013-21-01 | WASHER 8X16X1.5 | $2.00 | 2 |
