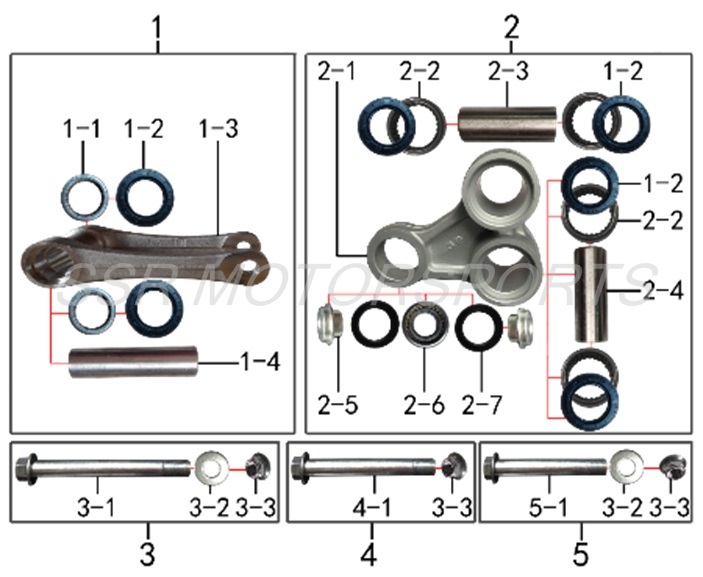

Suspension Linkage
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1-1 | A00064-28-00 | NEEDLE BEARING HK2012 | $26.30 | 2 |
| 1-2 | A00034-26-00 | DUST SEAL 20X32X5 | $2.60 | 6 |
| 1-3 | A00710-16-00 | ROD LINK SUBASSY | $68.30 | 1 |
| 1-4 | A00709-16-00 | BEARING SPACER SLEEVE 20X12X82 | $4.40 | 1 |
| 2-1 | A00711-16-00 | PIVOT ARM | $78.80 | 1 |
| 2-2 | A00169-28-00 | NEEDLE BEARING HK2020 | $8.80 | 4 |
| 2-3 | A00712-16-00 | BEARING SPACER SLEEVE 20X12X55 | $4.40 | 1 |
| 2-4 | A00713-16-00 | BEARING SPACER SLEEVE 20X12X54 | $4.40 | 1 |
| 2-5 | A00714-16-00 | COLLAR 10X9.5X14.5 | $4.40 | 2 |
| 2-6 | A00170-28-00 | NEEDLE BEARING HK1913 | $15.80 | 1 |
| 2-7 | A00255-26-00 | DUST SEAL 18X26X3 | $2.60 | 2 |
| 3-1 | A00085-19-01 | FLANGE BOLT M12X140 | $4.40 | 1 |
| 3-2 | A00111-21-01 | WASHER 12X24X1.5 | $2.00 | 2 |
| 3-3 | A00001-22-34 | FLANGE LOCKNUT M12 | $2.50 | 3 |
| 4-1 | A00466-19-01 | FLANGE BOLT M12X107 | $3.50 | 1 |
| 5-1 | A00019-19-01 | FLANGE BOLT M12X95 | $6.10 | 1 |
