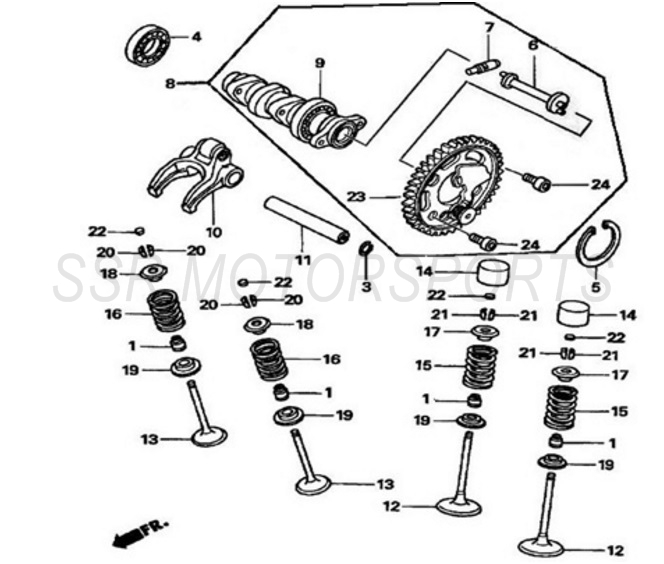

Camshaft
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00601-09-00 | VALVE STEM SEAL VSW5-807-5-7/8.4 | $8.00 | 4 |
| 3 | A00003-24-07 | CIRCLIP 12 | $2.50 | 1 |
| 4 | A00056-28-00 | BEARING 61904 | $68.30 | 1 |
| 5 | A00006-24-07 | CIRCLIP 42 | $4.40 | 1 |
| 6 | A00604-09-00 | DECOMPRESSION SHAFT | $47.30 | 1 |
| 7 | A00605-09-00 | DECOMPRESSION PLUNGER | $15.80 | 1 |
| 8 | A00606-09-00 | CAMSHAFT ASSY | $248.50 | 1 |
| 9 | A00607-09-00 | CAMSHAFT | $187.30 | 1 |
| 10 | A00608-09-00 | ROCKER ARM | $115.50 | 1 |
| 11 | A00609-09-00 | ROCKER ARM SHAFT | $15.80 | 1 |
| 12 | A00610-09-00 | INTAKE VALVE | $42.00 | 2 |
| 13 | A00611-09-00 | EXHAUST VALVE | $59.50 | 2 |
| 14 | A00612-09-00 | TAPPET COVER | $35.00 | 2 |
| 15 | A00613-09-00 | INTAKE VALVE SPRING | $8.80 | 2 |
| 16 | A00614-09-00 | EXHAUST VALVE SPRING | $8.80 | 2 |
| 17 | A00615-09-00 | UPPER INTAKE VALVE SPRING RETAINER | $8.00 | 2 |
| 18 | A00616-09-00 | UPPER EXHAUST VALVE SPRING RETAINER | $8.00 | 2 |
| 19 | A00617-09-00 | LOWER VALVE SPRING RETAINER | $14.00 | 4 |
| 20 | A00618-09-00 | VALVE COLLET | $3.50 | 4 |
| 21 | A00619-09-00 | VALVE COLLET | $3.50 | 4 |
| 23 | A00621-09-00 | CAMSHAFT SPROCKET | $85.80 | 1 |
| 24 | A00016-19-02 | ALLEN BOLT M7X10 | $2.00 | 2 |
