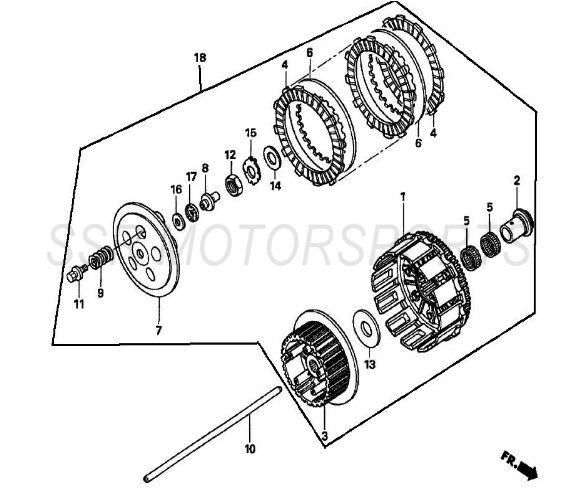

Clutch
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00487-09-00 | CLUTCH BASKET | $234.50 | 1 |
| 2 | A00488-09-00 | COLLAR | $19.30 | 1 |
| 3 | A00489-09-00 | INNER CLUTCH HUB | $49.00 | 1 |
| 4 | A00490-09-00 | CLUTCH FRICTION PLATE | $15.80 | 8 |
| 5 | A00046-28-00 | BEARING K28X32X17 | $17.50 | 2 |
| 6 | A00492-09-00 | CLUTCH STEEL PLATE | $19.30 | 7 |
| 7 | A00493-09-00 | CLUTCH PRESSURE PLATE | $68.30 | 1 |
| 8 | A00494-09-00 | CLUTCH LIFTER PIN | $19.30 | 1 |
| 9 | A00495-09-00 | CLUTCH SPRING | $3.50 | 6 |
| 10 | A00496-09-00 | CLUTCH PUSH ROD | $12.30 | 1 |
| 11 | A00497-09-00 | CLUTCH BOLT M6X25 | $2.00 | 6 |
| 12 | A00006-22-01 | NUT M18x1.5 | $4.40 | 1 |
| 13 | A00158-21-01 | WASHER 23X48 | $3.50 | 1 |
| 14 | A00157-21-01 | WASHER 18X27.5X2 | $2.50 | 1 |
| 15 | A00501-09-00 | WASHER PLATE | $6.10 | 1 |
| 16 | A00160-21-01 | WASHER | $2.50 | 1 |
| 17 | A00047-28-00 | BEARING 889101 | $8.80 | 1 |
| 18 | A00503-09-00 | CLUTCH ASSY | $532.00 | 1 |
