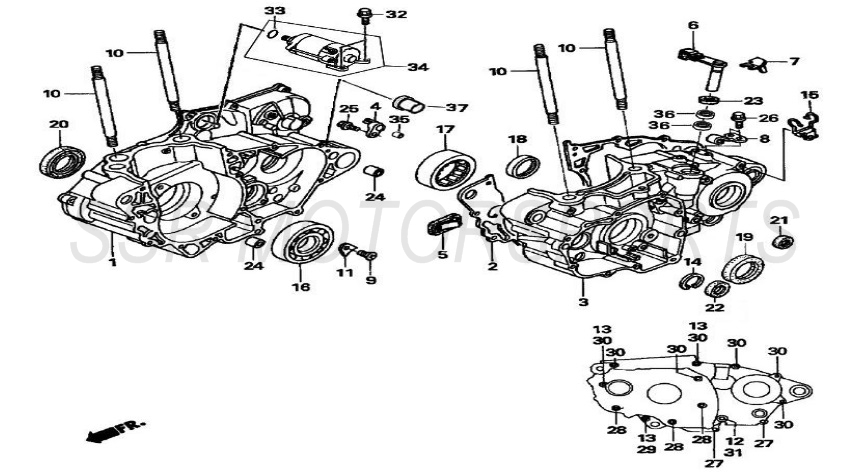

Crankcase
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00561-09-00 | RIGHT CRANKCASE HALF | $234.50 | 1 |
| 2 | A00034-13-00 | CENTER CASE GASKET | $42.00 | 1 |
| 3 | A00562-09-00 | LEFT CRANKCASE HALF | $234.50 | 1 |
| 4 | A00563-09-00 | OIL JET | $8.80 | 1 |
| 5 | A00564-09-00 | REED VALVE | $8.80 | 1 |
| 6 | A00565-09-00 | CLUTCH ACTUATOR | $8.80 | 1 |
| 7 | A00566-09-00 | LIFTER PLATE | $6.10 | 1 |
| 8 | A00567-09-00 | CLUTCH CABLE HOLDER | $4.40 | 1 |
| 9 | A00006-20-01 | PHILLIPS BOLT M6X12 | $2.00 | 2 |
| 10 | A00018-19-04 | CYLINDER STUD M10-M12X176 | $8.00 | 4 |
| 11 | A00568-09-00 | BEARING RETAINER PLATE | $2.00 | 2 |
| 12 | A00014-21-04 | CRUSH WASHER 8X16X1.5 | $2.00 | 1 |
| 13 | A00048-21-01 | WASHER 6.2X12X1.6 | $2.00 | 3 |
| 14 | A00013-24-07 | CIRCLIP 32 | $2.00 | 1 |
| 15 | A00569-09-00 | HOSE GUIDE | $3.50 | 1 |
| 16 | A00052-28-00 | BEARING TM-SX06C84CS44 | $59.50 | 1 |
| 17 | A00053-28-00 | BEARING NK39X65X18-3-5 | $19.30 | 1 |
| 18 | A00054-28-00 | BEARING HK 3308 | $12.30 | 1 |
| 19 | A00027-26-00 | OIL SEAL 38X52X7 | $8.00 | 1 |
| 20 | A00028-26-00 | OIL SEAL 39X56X7.5 | $8.00 | 1 |
| 21 | A00019-26-00 | OIL SEAL 14X22X5 | $4.40 | 1 |
| 22 | A00007-26-00 | OIL SEAL 20X32X6 | $6.10 | 1 |
| 23 | A00029-26-00 | OIL SEAL 12X18X5 | $6.10 | 1 |
| 24 | A00012-23-00 | DOWEL PIN 14X20 | $2.00 | 2 |
| 25 | A00002-19-01 | FLANGE BOLT M6X16 | $2.00 | 1 |
| 26 | A00418-19-08 | CASE FLANGE BOLT M6X16 | $2.00 | 2 |
| 27 | A00426-19-08 | CASE FLANGE BOLT M6X40 | $2.00 | 2 |
| 28 | A00428-19-08 | CASE FLANGE BOLT M6X50 | $2.00 | 3 |
| 29 | A00430-19-08 | CASE FLANGE BOLT M6X65 | $2.50 | 1 |
| 30 | A00444-19-08 | CASE FLANGE BOLT M6X75 | $2.50 | 7 |
| 31 | A00075-19-03 | FLANGE BOLT M8X65 | $2.50 | 1 |
| 32 | A00421-19-08 | CASE FLANGE BOLT M6X25 | $2.00 | 2 |
| 33 | A00030-27-00 | O-RING 25X3.55 | $2.60 | 1 |
| 34 | A00579-09-00 | STARTER ASSY | $187.30 | 1 |
| 35 | A00014-23-00 | DOWEL PIN 8X10.5 | $2.00 | 1 |
| 36 | A00055-28-00 | NEEDLE BEARING HK 1210V7 | $14.00 | 2 |
| 37 | A00581-09-00 | COLLAR | $15.80 | 2 |
