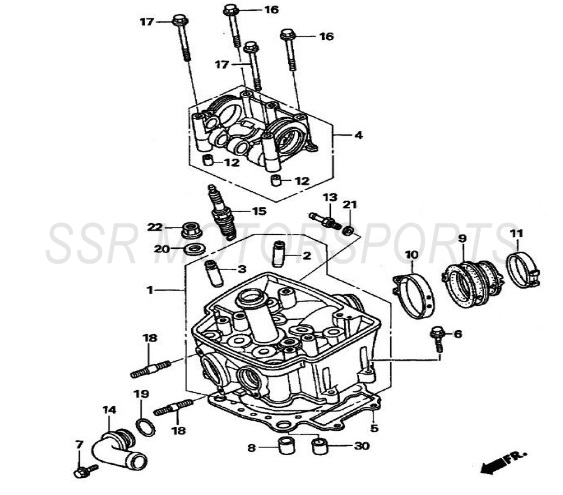

Cylinder Head
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00592-09-00 | CYLINDER HEAD ASSY | $352.50 | 1 |
| 2 | A00593-09-00 | INTAKE VALVE GUIDE | $12.30 | 2 |
| 3 | A00594-09-00 | EXHAUST VALVE GUIDE | $12.30 | 2 |
| 4 | A00595-09-00 | CAMSHAFT HOLDER ASSY | $92.80 | 1 |
| 5 | A00036-13-00 | CYLINDER HEAD GASKET | $29.80 | 1 |
| 6 | A00422-19-08 | CASE FLANGE BOLT M6X28 | $2.00 | 2 |
| 7 | A00006-19-01 | FLANGE BOLT M6X20 | $2.00 | 1 |
| 8 | A00012-23-00 | DOWEL PIN 14X20 | $2.00 | 2 |
| 9 | A00051-14-00 | INSULATOR CONNECTOR | $28.00 | 1 |
| 10 | A00052-14-00 | CLAMP 62 60-65 | $6.10 | 1 |
| 11 | A00053-14-00 | CLAMP 51 55-60 | $6.10 | 1 |
| 12 | A00013-23-00 | DOWEL PIN 8X10 | $2.00 | 2 |
| 13 | A00596-09-00 | JOINT | $4.40 | 1 |
| 14 | A00597-09-00 | WATER JOINT | $8.80 | 1 |
| 15 | IFR8H-11 | SPARK PLUG IFR8H-11 | $17.50 | 1 |
| 16 | A00034-19-01 | FLANGE BOLT M6X65 | $2.50 | 2 |
| 17 | A00073-19-03 | FLANGE BOLT M6X72 | $2.50 | 2 |
| 18 | A00017-19-04 | STUD M8X38 | $2.00 | 2 |
| 19 | A00029-27-00 | O-RING 19x3 | $2.60 | 1 |
| 20 | A00045-21-01 | WASHER 10.5X21X3.2 | $2.00 | 4 |
| 21 | A00046-21-01 | WASHER 5.2X8X1 | $2.00 | 1 |
| 22 | A00014-22-01 | NUT M10×1.25 | $2.00 | 4 |
