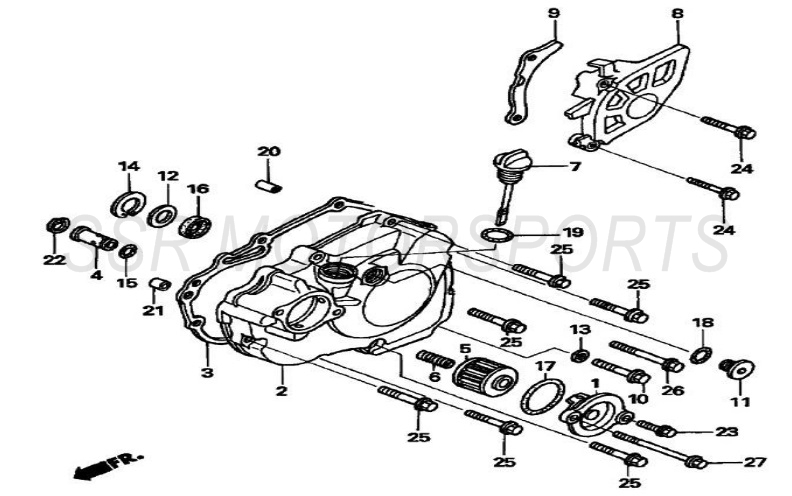

Left Crankcase Cover
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00441-09-00 | OIL FILTER COVER | $14.00 | 1 |
| 2 | A00442-09-00 | LEFT CRANKSCASE COVER | $129.50 | 1 |
| 3 | A00031-13-00 | LEFT CRANKCASE COVER GASKET | $42.00 | 1 |
| 4 | A00443-09-00 | OIL VALVE W/ O-RING | $15.80 | 1 |
| 5 | A00444-09-00 | OIL FILTER | $7.90 | 1 |
| 6 | A00445-09-00 | SPRING | $2.60 | 1 |
| 7 | A00446-09-00 | OIL LEVEL DIPSTICK | $12.30 | 1 |
| 8 | A00090-02-02 | FRONT SPROCKET COVER | $21.00 | 1 |
| 9 | A00447-09-00 | DRIVE CHAIN CASE PROTECTOR | $8.00 | 1 |
| 10 | A00049-19-01 | FLANGE BOLT M8X35 | $2.50 | 1 |
| 11 | A00448-09-00 | CAP | $2.60 | 1 |
| 12 | A00057-21-01 | WASHER 13.5X24X1.6 | $2.50 | 1 |
| 13 | A00014-21-04 | CRUSH WASHER 8X16X1.5 | $2.00 | 1 |
| 14 | A02686-09-00 | CIRCLIP 21.51X1.2 | $2.50 | 1 |
| 15 | A00034-27-00 | O-RING 9X1.8 | $2.00 | 1 |
| 16 | A00024-26-00 | OIL SEAL 10X21X5 | $14.00 | 1 |
| 17 | A00035-27-00 | O-RING 40X2.2 | $3.50 | 1 |
| 18 | A00036-27-00 | O-RING 14x2.65 | $2.00 | 1 |
| 19 | A00033-27-00 | O-RING 18X3.55 | $2.50 | 1 |
| 20 | A00001-23-00 | DOWEL PIN M8X14 | $2.00 | 1 |
| 21 | A00007-23-00 | DOWEL PIN 10X16 | $2.00 | 1 |
| 22 | A00455-09-00 | CIRCLIP 14 | $2.00 | 1 |
| 23 | A00418-19-08 | CASE FLANGE BOLT M6X16 | $2.00 | 1 |
| 24 | A00422-19-08 | CASE FLANGE BOLT M6X28 | $2.00 | 2 |
| 25 | A00424-19-08 | CASE FLANGE BOLT M6X32 | $2.00 | 6 |
| 26 | A00426-19-08 | CASE FLANGE BOLT M6X40 | $2.00 | 1 |
| 27 | A00439-19-08 | CASE FLANGE BOLT M6X75 | $2.50 | 1 |
