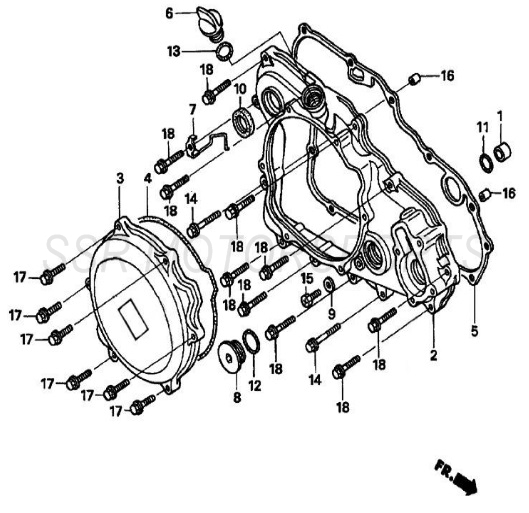

Right Crankcase Cover
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00477-09-00 | COLLAR | $3.50 | 1 |
| 2 | A00478-09-00 | RIGHT INNER ENGINE COVER | $129.50 | 1 |
| 3 | A00479-09-00 | CLUTCH COVER | $82.30 | 1 |
| 4 | A00032-13-00 | OUTER CLUTCH COVER O-RING | $21.00 | 1 |
| 5 | A00033-13-00 | RIGHT INNER CRANKCASE COVER GASKET | $33.30 | 1 |
| 6 | A00480-09-00 | OIL FILLER CAP | $8.80 | 1 |
| 7 | A00481-09-00 | VENT HOSE HOLDER | $3.50 | 1 |
| 8 | A00482-09-00 | CAP M30X1.5 | $10.50 | 1 |
| 9 | A00055-21-01 | WASHER 6.3X1.2X1.6 | $2.00 | 1 |
| 10 | A00026-26-00 | OIL SEAL TC20X28X6 | $4.40 | 1 |
| 11 | A00031-27-00 | O-RING 18X2.65 | $2.50 | 1 |
| 12 | A00032-27-00 | O-RING 28X2.2 | $2.60 | 1 |
| 13 | A00006-27-00 | O-RING 18X3.5 | $2.60 | 1 |
| 14 | A00425-19-08 | CASE FLANGE BOLT M6X35 | $2.00 | 2 |
| 15 | A00015-19-03 | HEX BOLT M6X10 | $2.00 | 1 |
| 16 | A00111-23-00 | DOWEL PIN | $2.00 | 2 |
| 17 | A00421-19-08 | CASE FLANGE BOLT M6X25 | $2.00 | 6 |
| 18 | A00422-19-08 | CASE FLANGE BOLT M6X28 | $2.00 | 10 |
