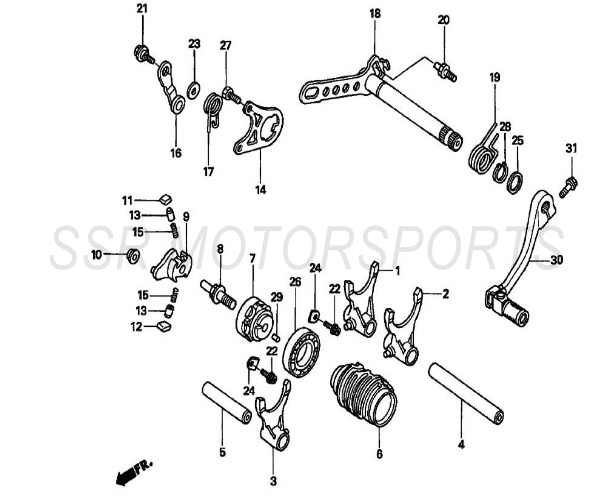

Shift Drum
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00534-09-00 | RIGHT GEAR SHIFT FORK | $26.30 | 1 |
| 2 | A00535-09-00 | LEFT GEAR SHIFT FORK | $26.30 | 1 |
| 3 | A00536-09-00 | MAINSHAFT GEAR SHIFT FORK | $28.00 | 1 |
| 4 | A00537-09-00 | SHAFT A | $21.00 | 1 |
| 5 | A00538-09-00 | SHAFT B | $17.50 | 1 |
| 6 | A00539-09-00 | GEARSHIFT DRUM | $82.30 | 1 |
| 7 | A00540-09-00 | GEARSHIFT STAR | $19.30 | 1 |
| 8 | A00541-09-00 | SHAFT M8X43 | $2.50 | 1 |
| 9 | A00542-09-00 | DRUM PLATE | $19.30 | 1 |
| 10 | A00543-09-00 | COLLAR | $2.50 | 1 |
| 11 | A00544-09-00 | PAWL A | $2.00 | 1 |
| 12 | A00545-09-00 | PAWL B | $2.00 | 1 |
| 13 | A00110-23-00 | DOWEL PIN | $2.00 | 2 |
| 14 | A00546-09-00 | PLATE | $8.00 | 1 |
| 15 | A00547-09-00 | PAWL SPRING | $2.00 | 2 |
| 16 | A00548-09-00 | DRUM STOPPER | $12.30 | 1 |
| 17 | A00549-09-00 | SPRING | $2.50 | 1 |
| 18 | A00550-09-00 | SHIFTER SHAFT | $35.00 | 1 |
| 19 | A00551-09-00 | SPRING | $3.50 | 1 |
| 20 | A00016-19-04 | STUD M8X36.5 | $2.00 | 1 |
| 21 | A00025-19-X7 | STEPPED FLANGE BOLT SR450S | $2.00 | 1 |
| 22 | A00025-19-01 | FLANGE BOLT M6X14 | $2.00 | 2 |
| 23 | A00159-21-01 | WASHER 6.2X16X1 | $2.00 | 1 |
| 24 | A00552-09-00 | BEARING RETAINER PLATE | $2.00 | 2 |
| 25 | A00050-21-01 | WASHER 14.2X21X1 | $2.00 | 1 |
| 26 | A00049-28-00 | BEARING 6805LU | $28.00 | 1 |
| 27 | A00001-19-03 | BOLT M6X16 | $2.00 | 2 |
| 28 | A00005-24-07 | CIRCLIP 14 | $2.00 | 1 |
| 29 | A00554-09-00 | ROLLER 4X8 | $2.60 | 1 |
| 30 | A00555-09-00 | GEARSHIFT PEDAL | $42.00 | 1 |
| 31 | A00003-19-01 | FLANGE BOLT M6X25 | $2.00 | 1 |
