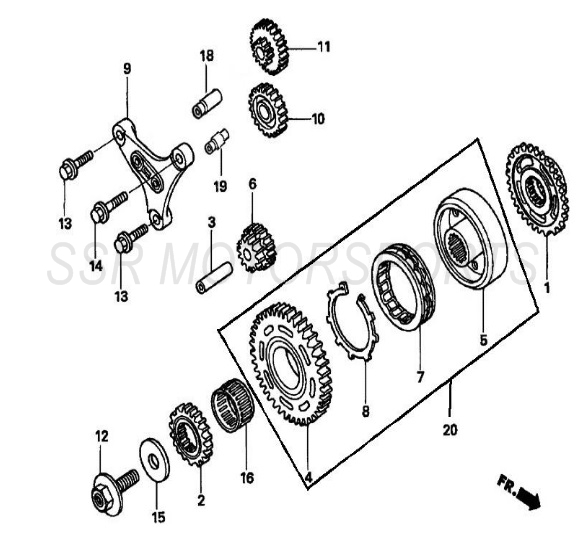

Starter Clutch
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00517-09-00 | GEAR 40T | $68.30 | 1 |
| 2 | A00518-09-00 | GEAR 23T | $75.30 | 1 |
| 3 | A02678-09-00 | PIN 10X44 | $8.00 | 1 |
| 4 | A00519-09-00 | GEAR 35T | $85.80 | 1 |
| 5 | A00520-09-00 | STARTER CLUTCH OUTER | $89.30 | 1 |
| 6 | A00521-09-00 | GEAR 9T/19T | $59.50 | 1 |
| 7 | A00522-09-00 | ONE-WAY CLUTCH | $52.50 | 1 |
| 8 | A00523-09-00 | CLIP | $38.50 | 1 |
| 9 | A00524-09-00 | HOLDER | $56.00 | 1 |
| 10 | A00525-09-00 | GEAR II 23T | $33.30 | 1 |
| 11 | A00526-09-00 | GEAR I 13T/43T | $62.00 | 1 |
| 12 | A00527-09-00 | WASHER BOLT M12X1.25X47 | $2.60 | 1 |
| 13 | A00076-19-01 | FLANGE BOLT M7X28 | $2.00 | 2 |
| 14 | A00077-19-03 | FLANGE BOLT M7X38 | $2.00 | 1 |
| 15 | A00052-21-01 | WASHER 12.3X32X4.4 | $2.00 | 1 |
| 16 | A00048-28-00 | NEEDLE BEARING KJ31X36X18.3XS | $19.30 | 1 |
| 18 | A00529-09-00 | SHAFT A | $8.80 | 1 |
| 19 | A00530-09-00 | SHAFT B | $8.80 | 1 |
| 20 | A00531-09-00 | STARTER CLUTCH ASSY | $234.50 | 1 |
