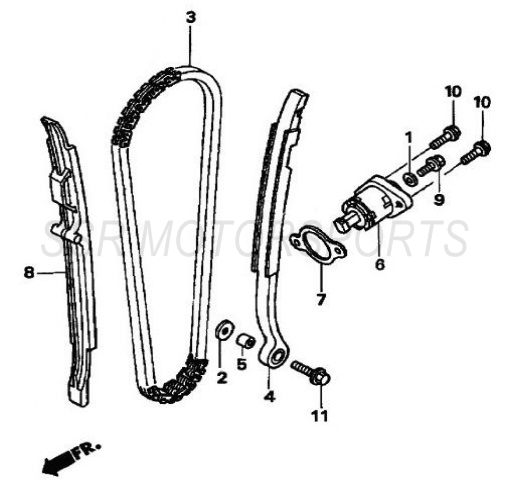

Timing Chain
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00043-21-01 | WASHER 6.2X14X1 | $2.00 | 1 |
| 2 | A00044-21-01 | WASHER 6.4X18X1.6 | $2.00 | 1 |
| 3 | A00622-09-00 | CAM CHAIN 112L | $140.00 | 1 |
| 4 | A00623-09-00 | REAR CAM CHAIN GUIDE | $26.30 | 1 |
| 5 | A00011-23-00 | DOWEL PIN 6X9 | $2.00 | 1 |
| 6 | A00624-09-00 | CAM CHAIN TENSIONER | $14.00 | 1 |
| 7 | A00037-13-00 | CAM CHAIN TENSIONER GASKET | $4.40 | 1 |
| 8 | A00625-09-00 | FRONT CAM CHAIN GUIDE | $26.30 | 1 |
| 9 | A00013-19-01 | FLANGE BOLT M6x10 | $2.00 | 1 |
| 10 | A00006-19-01 | FLANGE BOLT M6X20 | $2.00 | 2 |
| 11 | A00215-19-01 | FLANGE BOLT | $2.00 | 1 |
