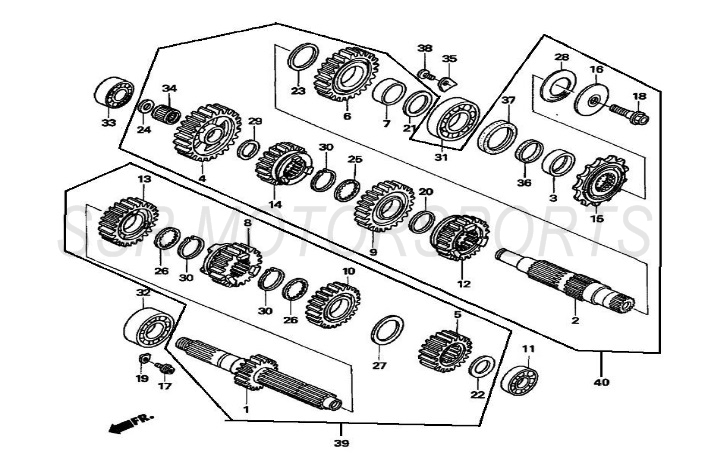

Transmission
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00107-17-00 | MAINSHAFT 13T | $68.30 | 1 |
| 2 | A00071-17-00 | COUNTERSHAFT | $80.50 | 1 |
| 3 | A00072-17-00 | COLLAR | $8.80 | 1 |
| 4 | A00073-17-00 | GEAR 29T | $52.50 | 1 |
| 5 | A00074-17-00 | GEAR 16T | $45.50 | 1 |
| 6 | A00075-17-00 | GEAR 26T | $56.00 | 1 |
| 7 | A00076-17-00 | COLLAR | $8.80 | 1 |
| 8 | A00077-17-00 | GEAR 17T | $45.50 | 1 |
| 9 | A00078-17-00 | GEAR 21T | $45.50 | 1 |
| 10 | A00079-17-00 | GEAR 19T | $45.50 | 1 |
| 11 | A00040-28-00 | BEARING 6203U | $31.50 | 1 |
| 12 | A00081-17-00 | GEAR 19T | $45.50 | 1 |
| 13 | A00082-17-00 | GEAR 23T | $52.50 | 1 |
| 14 | A00083-17-00 | GEAR 19T | $45.50 | 1 |
| 15 | A00347-07-00 | COUNTERSHAFT SPROCKET 13T | $45.50 | 1 |
| 16 | A00085-17-00 | PLATE 8.2X35X3.5 | $4.40 | 1 |
| 17 | A00025-19-01 | FLANGE BOLT M6X14 | $2.00 | 2 |
| 18 | A00049-19-01 | FLANGE BOLT M8X35 | $2.50 | 1 |
| 19 | A00086-17-00 | BEARING RETAINER PLATE 65MM | $2.00 | 2 |
| 39 | A00105-17-00 | MAINSHAFT ASSY | $224.00 | 1 |
| 40 | A00106-17-00 | COUNTERSHAFT ASSY | $272.00 | 1 |
