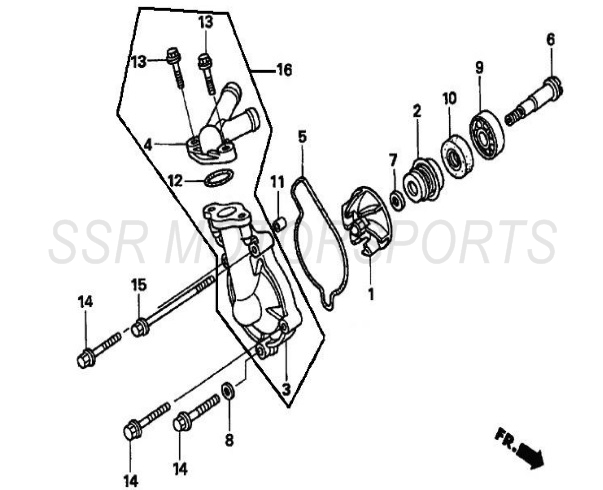

Water Pump
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00466-09-00 | WATER PUMP IMPELLER | $35.00 | 1 |
| 2 | A00467-09-00 | WATER PUMP MECHANICAL SEAL | $28.00 | 1 |
| 3 | A00468-09-00 | WATER PUMP COVER | $63.00 | 1 |
| 4 | A00469-09-00 | WATER PUMP JOINT | $59.50 | 1 |
| 5 | A00470-09-00 | WATER PUMP COVER O-RING | $8.80 | 1 |
| 6 | A00471-09-00 | WATER PUMP SHAFT | $35.00 | 1 |
| 7 | A00056-21-01 | WASHER 7.5X13X1 | $2.00 | 1 |
| 8 | A00055-21-01 | WASHER 6.3X1.2X1.6 | $2.00 | 1 |
| 9 | A00045-28-00 | BEARING 16001JRX | $14.00 | 1 |
| 10 | A00025-26-00 | OIL SEAL 12X22X5 | $8.00 | 1 |
| 11 | A00015-23-00 | DOWEL PIN 6.4X8X7 | $2.00 | 1 |
| 12 | A00115-27-00 | O-RING | $2.60 | 1 |
| 13 | A00419-19-08 | CASE FLANGE BOLT M6X20 | $2.00 | 2 |
| 14 | A00422-19-08 | CASE FLANGE BOLT M6X28 | $2.00 | 3 |
| 15 | A00432-19-08 | CASE FLANGE BOLT M6X85 | $2.50 | 1 |
| 16 | A00476-09-00 | WATER PUMP COVER ASSY | $115.50 | 1 |
