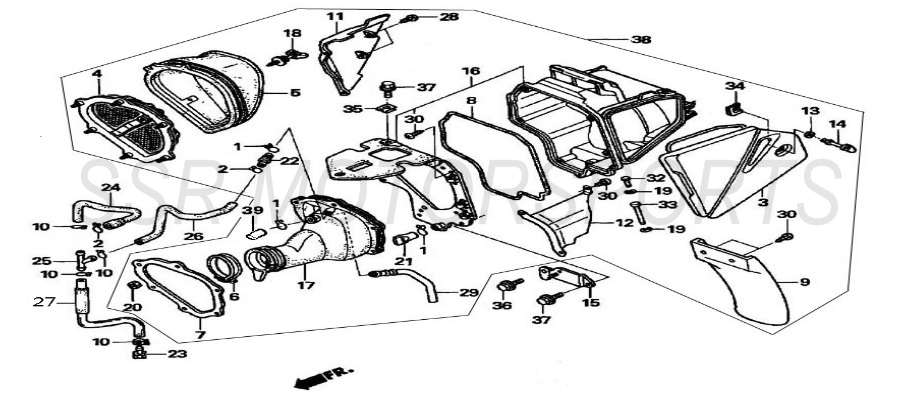

Air Cleaner
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00009-24-03 | WIRE HOSE CLAMP 14 | $2.00 | 3 |
| 2 | A00006-24-03 | WIRE HOSE CLAMP 16 | $2.00 | 2 |
| 3 | A00061-14-00 | AIRBOX LID | $28.00 | 1 |
| 4 | A00062-14-00 | AIR FILTER HOLDER SCREEN | $35.00 | 1 |
| 5 | A00063-14-00 | AIR FILTER ELEMENT TWIN AIR | $72.50 | 1 |
| 6 | A00003-24-02 | CLAMP 60 | $8.00 | 1 |
| 7 | A00065-14-00 | AIR CLEANER TUBE PLATE | $14.00 | 1 |
| 8 | A00066-14-00 | AIRBOX SEAL | $8.80 | 1 |
| 9 | A00067-14-00 | MUDFLAP | $8.80 | 1 |
| 10 | A00007-24-03 | WIRE HOSE CLAMP 12 | $2.00 | 4 |
| 11 | A00068-14-00 | RIGHT AIRBOX COVER | $19.30 | 1 |
| 12 | A00069-14-00 | LEFT AIRBOX COVER B | $19.30 | 1 |
| 13 | A00104-21-01 | WASHER 6X18X1.5 | $2.00 | 1 |
| 14 | A00070-14-00 | AIRBOX COVER BOLT M6x30 | $2.00 | 1 |
| 15 | A00071-14-00 | RECTIFIER STAY | $6.10 | 1 |
| 16 | A00072-14-00 | AIRBOX | $176.80 | 1 |
| 17 | A00073-14-00 | AIRBOX TUBE | $45.50 | 1 |
| 18 | A00247-19-01 | AIR FILTER WINGBOLT | $4.40 | 1 |
| 19 | A00015-24-07 | CIRCLIP 3 | $2.00 | 2 |
| 20 | A00007-22-01 | NUT M5 | $2.00 | 6 |
| 21 | A00074-14-00 | AIRBOX BREATHER PLUG | $4.40 | 1 |
| 22 | A00075-14-00 | BREATHER TUBE JOINT | $8.00 | 1 |
| 23 | A00076-14-00 | BREATHER TUBE PLUG | $4.40 | 1 |
| 24 | A00077-14-00 | BREATHER TUBE 8X12X11X14 | $8.80 | 1 |
| 25 | A00078-14-00 | 3 WAY JOINT | $3.50 | 1 |
| 26 | A00079-14-00 | BREATHER TUBE 8X12X12X14.5 | $8.80 | 1 |
| 27 | A00080-14-00 | BREATHER TUBE 8X12X260 | $8.80 | 1 |
| 28 | A00012-20-03 | ST SCREW ST5X12 | $2.00 | 2 |
| 29 | A00081-14-00 | TUBE | $8.80 | 1 |
| 30 | A00011-20-03 | ST SCREW ST5X16 | $2.00 | 8 |
| 32 | A00026-25-01 | PIN | $2.00 | 1 |
| 33 | A00027-25-01 | PIN | $2.00 | 1 |
| 35 | A00001-22-05 | CLIP NUT M6 | $2.00 | 1 |
| 36 | A00445-19-08 | CASE FLANGE BOLT M6X12 | $2.00 | 1 |
| 37 | A00418-19-08 | CASE FLANGE BOLT M6X16 | $2.00 | 1 |
| 38 | A00082-14-00 | AIR BOX ASSY | $187.30 | 1 |
| 39 | A00083-14-00 | BREATHER CAP | $2.60 | 1 |
