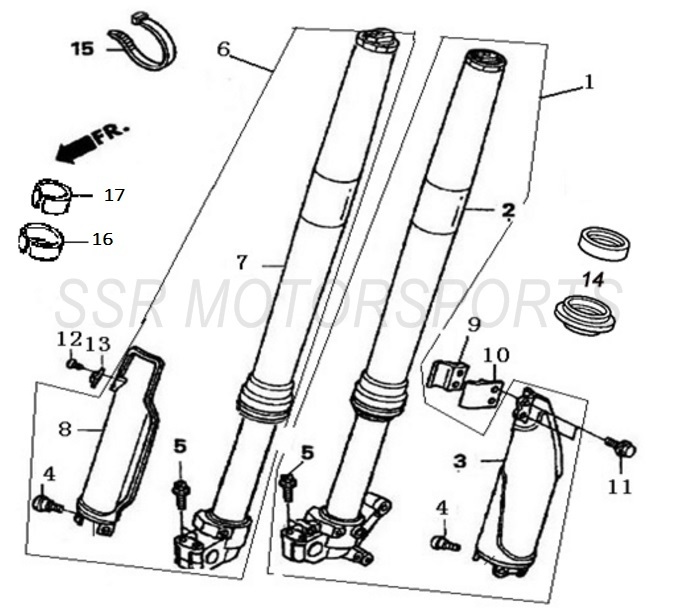

Front Suspension
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00076-16-00 | LEFT FORK W/ FORK GUARD ASSY | $437.50 | 1 |
| 2 | A00077-16-00 | LEFT FORK ASSY | $349.00 | 1 |
| 3 | A00088-02-01 | LEFT FORK PROTECTOR WHITE | $38.50 | 1 |
| 4 | A00008-19-07 | STEPPED ALLEN BOLT M6X12 | $2.00 | 6 |
| 5 | A00014-19-01 | FLANGE BOLT M8X40 | $2.50 | 4 |
| 6 | A00074-16-00 | RIGHT FORK W/ FORK GUARD ASSY | $437.50 | 1 |
| 7 | A00075-16-00 | RIGHT FORK ASSY | $349.00 | 1 |
| 8 | A00089-02-01 | RIGHT FORK PROTECTOR WHITE | $38.50 | 1 |
| 9 | A00078-16-00 | FRONT BRAKE HOSE HOLDER A | $2.60 | 1 |
| 10 | A00079-16-00 | FRONT BRAKE HOSE HOLDER B | $2.60 | 1 |
| 11 | A00002-19-01 | FLANGE BOLT M6X16 | $2.00 | 2 |
| 14 | A00687-16-00 | FORK/DUST SEAL SET 48X57.8X9.5/48X58X14 | $35.00 | 2 |
| 15 | A00006-24-01 | ZIP TIE 3.6X250 | $2.50 | 1 |
| 16 | A00692-16-00 | GUIDE BUSHING | $8.80 | 2 |
| 17 | A00693-16-00 | SLIDER BUSHING | $8.80 | 2 |
