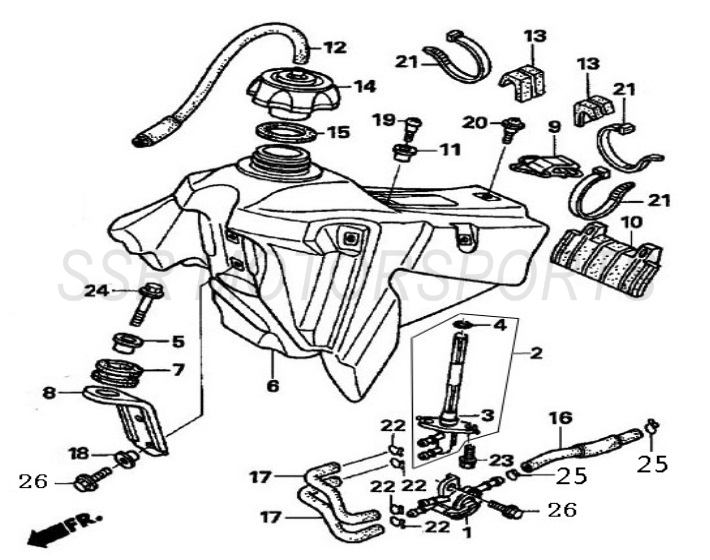

Fuel Tank
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00080-12-00 | FUEL PETCOCK | $24.50 | 1 |
| 2 | A00081-12-00 | FUEL PICKUP ASSY W/ SCREEN | $28.00 | 1 |
| 3 | A00375-12-00 | FUEL SCREEN | $14.00 | 1 |
| 4 | A00038-27-00 | O-RING 11.8X3.55 | $2.00 | 1 |
| 5 | A00376-12-00 | COLLAR 6.3X25X18 | $2.00 | 1 |
| 6 | A00063-12-02 | FUEL TANK BLACK | $169.00 | 1 |
| 7 | A00377-12-00 | FRONT FUEL TANK RUBBER DAMPER | $2.60 | 1 |
| 8 | A00378-12-00 | FRONT FUEL TANK STAY | $8.00 | 1 |
| 9 | A00066-12-00 | FUEL TANK STRAP | $8.80 | 1 |
| 10 | A00380-12-00 | REAR FUEL TANK RUBBER DAMPER | $8.00 | 1 |
| 11 | A00090-12-00 | SEAT COLLAR PLASTIC | $2.00 | 1 |
| 12 | A00091-12-00 | FUEL CAP VENT HOSE | $12.30 | 1 |
| 13 | A00092-12-00 | RUBBER FUEL TANK MOUNTING DAMPER | $8.80 | 2 |
| 14 | A00093-12-00 | FUEL CAP | $15.80 | 1 |
| 15 | A00094-12-00 | FUEL CAP GASKET 41X58X2.5 | $8.00 | 1 |
| 16 | A00095-12-00 | FUEL HOSE A 7.3X12.5X250 | $19.30 | 1 |
| 17 | A00074-12-00 | FUEL HOSE B 7X12 | $8.80 | 2 |
| 18 | A00097-12-00 | COLLAR 6.3X16X6.5 | $2.00 | 2 |
| 19 | A00098-12-00 | FRONT FUEL TANK BOLT M5X16X0.8 | $2.00 | 1 |
| 20 | A00099-12-00 | REAR FUEL TANK SCREW 5X16X0.8 | $2.00 | 1 |
| 21 | A00008-24-01 | ZIP TIE 4X250 | $2.50 | 4 |
| 22 | A00007-24-03 | WIRE HOSE CLAMP 12 | $2.00 | 4 |
| 23 | A00031-19-01 | FLANGE BOLT M6X12 | $2.00 | 2 |
| 24 | A00001-19-01 | FLANGE BOLT M6X30 | $2.00 | 1 |
| 25 | A00008-24-03 | WIRE HOSE CLAMP 8X14 | $2.00 | 2 |
| 26 | A00002-19-01 | FLANGE BOLT M6X16 | $2.00 | 3 |
