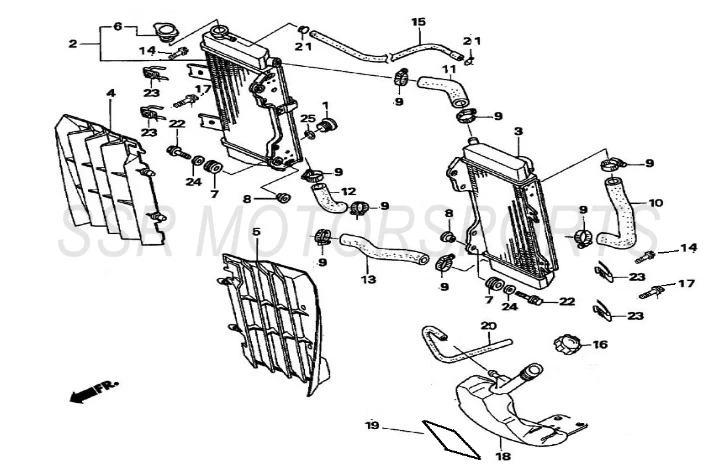

Radiator
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00022-06-00 | PLUG M16X1.25 | $8.80 | 1 |
| 2 | A00023-06-00 | RIGHT RADIATOR ASSY | $162.80 | 1 |
| 3 | A00024-06-00 | LEFT RADIATOR ASSY | $162.80 | 1 |
| 4 | A00051-02-01 | RIGHT RADIATOR GRILLE WHITE | $21.00 | 1 |
| 5 | A00052-02-01 | LEFT RADIATOR GRILLE WHITE | $21.00 | 1 |
| 6 | A00025-06-00 | RADIATOR CAP | $8.80 | 1 |
| 7 | A00026-06-00 | RUBBER GROMMET | $2.00 | 4 |
| 8 | A00027-06-00 | COLLAR 6.5X10X23 | $2.00 | 4 |
| 9 | A00002-24-02 | HOSE CLAMP 27 | $2.50 | 8 |
| 10 | A00028-06-00 | RADIATOR HOSE A | $15.80 | 1 |
| 11 | A00029-06-00 | RADIATOR HOSE B | $14.00 | 1 |
| 12 | A00030-06-00 | RADIATOR HOSE C | $14.00 | 1 |
| 13 | A00031-06-00 | RADIATOR HOSE D | $14.00 | 1 |
| 14 | A00002-19-01 | FLANGE BOLT M6X16 | $2.00 | 2 |
| 15 | A00032-06-00 | OVERFLOW HOSE 5.5x8x825 | $21.00 | 1 |
| 16 | A00033-06-00 | COOLANT RESERVOIR CAP | $8.00 | 1 |
| 17 | A00006-19-01 | FLANGE BOLT M6X20 | $2.00 | 2 |
| 18 | A00034-06-00 | COOLANT RESERVOIR | $68.30 | 1 |
| 19 | A00035-06-00 | LABEL | $2.50 | 1 |
| 20 | A00036-06-00 | VENT HOSE 5X8X400 | $12.30 | 1 |
| 21 | A00007-24-03 | WIRE HOSE CLAMP 12 | $2.00 | 2 |
| 22 | A00003-19-01 | FLANGE BOLT M6X25 | $2.00 | 4 |
| 23 | A00343-22-01 | U-SHAPED CLIP NUT M6 | $2.00 | 4 |
| 24 | A00007-21-01 | WASHER M6X18X1.5 - BLACK | $2.00 | 4 |
| 25 | A00037-06-00 | SEALING WASHER | $2.00 | 1 |
