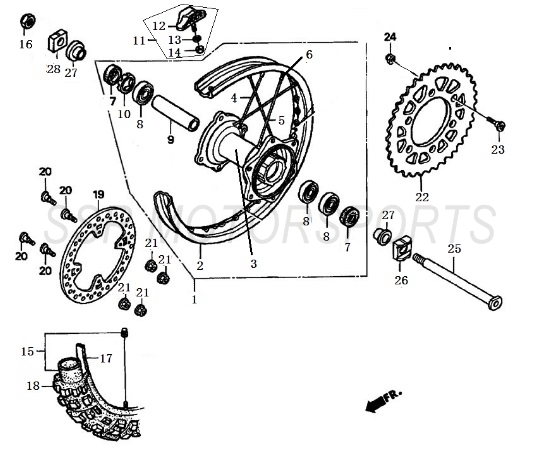

Rear Wheel
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00081-18-01 | REAR WHEEL ASSY 2.15-18 BLACK RIM / SILVER HUB | $649.30 | 1 |
| 2 | A00092-18-00 | REAR RIM 2.15-18 | $260.80 | 1 |
| 3 | A00093-18-00 | REAR WHEEL HUB | $376.30 | 1 |
| 4 | A00070-18-00 | REAR INNER SPOKE W/ NIPPLE | $3.50 | 16 |
| 5 | A00071-18-00 | REAR OUTER SPOKE W/ NIPPLE | $3.50 | 16 |
| 6 | A00096-18-00 | SPOKE NIPPLE | $2.00 | 32 |
| 7 | A00012-26-00 | SEAL 33X43X7 | $3.50 | 2 |
| 8 | A00039-28-00 | BEARING 6905-RS1 | $12.30 | 3 |
| 9 | A00099-18-00 | REAR WHEEL BEARING SPACER | $35.00 | 1 |
| 10 | A00074-18-00 | RETAINER | $4.40 | 1 |
| 11 | A00100-18-00 | RIM LOCK 2.15 | $28.00 | 1 |
| 12 | A00101-18-00 | REAR RIM LOCK 2.15 | $24.50 | 1 |
| 13 | A00060-21-01 | WASHER 8.4X16X1.6 | $2.00 | 1 |
| 14 | A00002-22-01 | NUT M8 | $2.00 | 1 |
| 15 | A00084-18-00 | INNERTUBE 4.60-18 | $24.50 | 1 |
| 16 | A00012-22-01 | REAR AXLE NUT | $6.10 | 1 |
| 17 | A00033-18-00 | RIM STRIP 18" | $8.00 | 1 |
| 18 | A00103-18-00 | REAR TIRE 110/100-18 | $159.30 | 1 |
| 19 | A00645-04-00 | REAR BRAKE ROTOR 240X4 | $59.50 | 1 |
| 20 | A00006-19-01 | FLANGE BOLT M6X20 | $2.00 | 4 |
| 21 | A00002-22-34 | FLANGE LOCKNUT M6 | $2.00 | 4 |
| 22 | A00353-07-00 | REAR SPROCKET 48T-520 BLACK | $105.00 | 1 |
| 23 | A00045-19-03 | REAR SPROCKET BOLT | $2.00 | 6 |
| 24 | A00001-22-08 | LOCKNUT M8X1.25 | $2.00 | 6 |
| 25 | A00108-18-00 | REAR WHEEL AXLE | $45.50 | 1 |
| 26 | A00109-18-00 | LEFT CHAIN ADJUSTER BLOCK | $10.50 | 1 |
| 27 | A00110-18-00 | REAR WHEEL SPACER | $21.00 | 2 |
| 28 | A00111-18-00 | RIGHT CHAIN ADJUSTER BLOCK | $10.50 | 1 |
