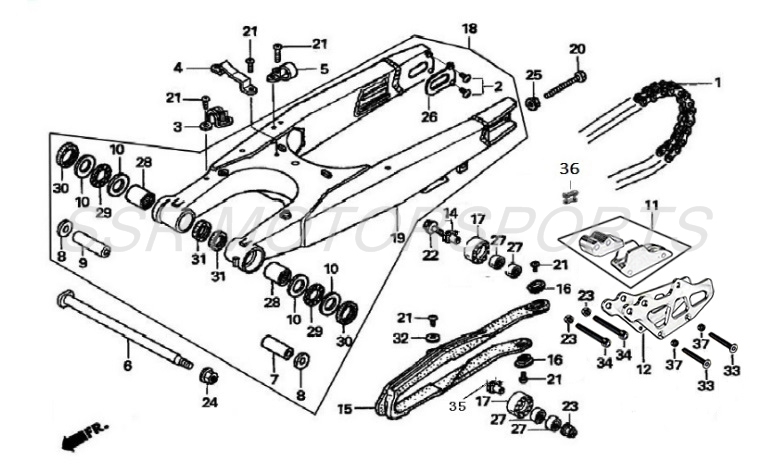

Swingarm
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00056-07-00 | DRIVE CHAIN DID VF GOLD/GOLD (O-RING 520-112L) *ENDLESS | $234.50 | 1 |
| 2 | A00007-20-12 | CS SCREW M5X12 | $2.00 | 2 |
| 3 | A00057-07-00 | REAR BRAKE HOSE HOLDER 1 | $2.00 | 1 |
| 4 | A00058-07-00 | REAR BRAKE HOSE HOLDER 2 | $2.00 | 1 |
| 5 | A00059-07-00 | REAR BRAKE HOSE HOLDER 3 | $2.00 | 1 |
| 6 | A00060-07-00 | SWINGARM AXLE M14X247X1.5 | $40.30 | 1 |
| 7 | A00061-07-00 | LEFT SWINGARM SHAFT SLEEVE 17X22X46 | $15.80 | 1 |
| 8 | A00062-07-00 | SWINGARM SHAFT SLEEVE SPACER 17X30X6 | $2.50 | 2 |
| 9 | A00063-07-00 | RIGHT SWINGARM SHAFT SLEEVE 17X22X54 | $19.30 | 1 |
| 10 | A00064-07-00 | SWINGARM SHAFT WASHER 34.5X22.3X2.0 | $2.50 | 4 |
| 12 | A00431-07-00 | LOWER CHAIN GUIDE ASSY INCLUDES HARDWARE | $75.30 | 1 |
| 14 | A00067-07-00 | CHAIN ROLLER BUSHING 8.5X16X12 | $2.60 | 1 |
| 15 | A00068-07-00 | SWINGARM CHAIN SLIDER | $68.30 | 1 |
| 16 | A00069-07-00 | CHAIN SLIDER WASHER 28.5X21X5.5 | $2.00 | 2 |
| 17 | A00070-07-00 | CHAIN ROLLER | $14.00 | 2 |
| 18 | A00439-07-00 | SWINGARM ASSY | $493.50 | 1 |
| 19 | A00072-07-00 | SWINGARM | $399.00 | 1 |
| 20 | A00073-07-00 | CHAIN ADJUSTER BOLT M8X50X1.25 | $2.50 | 2 |
| 21 | A00007-20-01 | CS SCREW M5x12 | $2.00 | 9 |
| 22 | A00014-19-01 | FLANGE BOLT M8X40 | $2.50 | 1 |
| 23 | A00005-22-04 | FLANGE LOCKNUT M6 | $2.00 | 3 |
| 24 | A00003-22-01 | FLANGE LOCKNUT M14x1.5 | $2.60 | 1 |
| 25 | A00002-22-01 | NUT M8 | $2.00 | 2 |
| 26 | A00075-07-00 | CHAIN ADJUSTER PLATE | $8.80 | 2 |
| 27 | A00057-28-00 | BEARING 608-2RS | $24.50 | 4 |
| 28 | A00024-28-00 | NEEDLE BEARING 22X29X30 | $12.30 | 2 |
| 29 | A00058-28-00 | THRUST NEEDLE ROLLER BEARING 34.5X22.2X2 | $12.30 | 2 |
| 30 | A00009-26-00 | OUTER DUST SEAL 30X37X4 | $12.30 | 2 |
| 31 | A00010-26-00 | DUST SEAL 22X29X4 | $4.40 | 2 |
| 32 | A00040-21-01 | WASHER M5.5x18x2 | $2.00 | 1 |
| 33 | A00401-19-00 | COUNTERSUNK ALLEN BOLT M5X50 | $2.00 | 2 |
| 34 | A00400-19-00 | ALLEN BOLT M6X55 | $2.00 | 2 |
| 35 | A00081-07-00 | LOWER CHAIN ROLLER BUSHING | $2.60 | 1 |
| 36 | A00344-07-00 | CLIP LINK 520 | $8.80 | 1 |
| 37 | A00331-22-00 | LOCKNUT M5 | $2.00 | 2 |
