Electrical
CLICK PARTS TO ADD

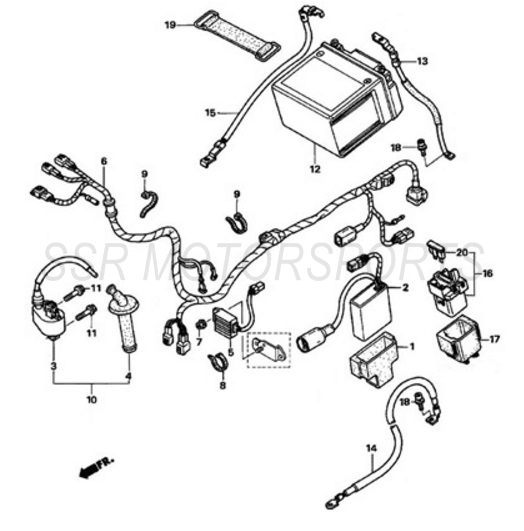

| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00075-08-00 | CDI HOLDER | $8.80 | 1 |
| 2 | A00076-08-00 | CDI | $234.50 | 1 |
| 3 | A00077-08-00 | IGNITION COIL | $63.00 | 1 |
| 4 | A00078-08-00 | SPARK PLUG CAP | $21.00 | 1 |
| 5 | A00560-08-00 | REGULATOR / RECTIFIER 5 WIRE | $52.50 | 1 |
| 6 | A00666-08-00 | WIRE HARNESS 5 WIRE | $82.30 | 1 |
| 7 | A00001-22-01 | NUT M6 | $2.00 | 1 |
| 8 | A00006-24-01 | ZIP TIE 3.6X250 | $2.50 | 6 |
| 9 | A00007-24-01 | ZIP TIE 3.6X150 | $2.00 | 2 |
| 10 | A00083-08-00 | IGNITION COIL ASSY | $68.30 | 1 |
| 11 | A00002-19-01 | FLANGE BOLT M6X16 | $2.00 | 2 |
| 12 | HJTX7L-FP | LITHIUM BATTERY HJTX7L-FP | $140.00 | 1 |
| 13 | A00085-08-00 | POSITIVE BATTERY CABLE | $19.30 | 1 |
| 14 | A00086-08-00 | STARTER RELAY HARNESS | $19.30 | 1 |
| 15 | A00087-08-00 | NEGATIVE BATTERY CABLE | $19.30 | 1 |
| 16 | A00088-08-00 | STARTER RELAY | $47.30 | 1 |
| 17 | A00089-08-00 | STARTER RELAY HOLDER | $8.80 | 1 |
| 18 | A00043-19-03 | BOLT M5X9 | $2.00 | 2 |
| 19 | A00071-08-00 | BATTERY STRAP | $8.80 | 1 |
| 20 | A00091-08-00 | BLADE FUSE 15A | $2.60 | 1 |
