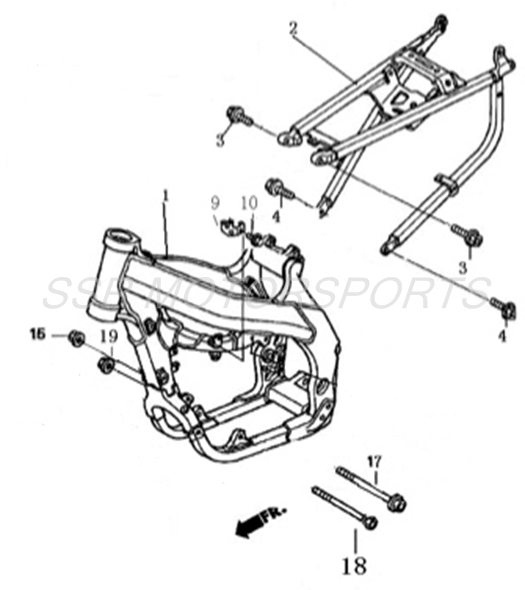

Frame
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00045-11-00 | FRAME *OVERSIZE/WEIGHT* | $1,350.00 | 1 |
| 2 | A00027-11-00 | IGNITION COIL BRACKET | $4.40 | 1 |
| 3 | A00028-11-00 | CLUTCH CABLE GUIDE | $4.40 | 1 |
| 4 | A00029-11-00 | CABLE GUIDE | $3.50 | 1 |
| 5 | A00030-11-00 | STAY | $2.60 | 1 |
| 6 | A00031-11-00 | SUBFRAME | $210.00 | 1 |
| 7 | A00032-11-00 | COLLAR 6.3X14X4.8 | $2.00 | 2 |
| 8 | A00033-11-00 | COLLAR | $2.00 | 1 |
| 9 | A00034-11-00 | COLLAR | $2.00 | 2 |
| 10 | A00035-11-00 | RIGHT ENGINE GUARD | $8.80 | 1 |
| 11 | A00036-11-00 | CENTER ENGINE GUARD | $202.00 | 1 |
| 12 | A00037-11-00 | LEFT ENGINE GUARD | $8.80 | 1 |
| 13 | A00047-11-00 | RIGHT ENGINE MOUNTING BRACKET | $26.30 | 1 |
| 14 | A00048-11-00 | LEFT ENGINE MOUNTING BRACKET | $26.30 | 1 |
| 15 | A00040-11-00 | FUEL HOSE GUIDE | $2.50 | 1 |
| 16 | A00110-19-01 | FLANGE BOLT | $2.00 | 1 |
| 17 | A00041-19-01 | FLANGE BOLT M8X30 | $2.00 | 2 |
| 18 | A00069-19-01 | FLANGE BOLT M10×135×1.25 | $4.40 | 1 |
| 19 | A00070-19-01 | FLANGE BOLT M10X172X1.25 | $8.00 | 1 |
| 20 | A00015-19-01 | FLANGE BOLT M8X20 S12 | $2.00 | 4 |
| 21 | A00071-19-01 | FLANGE BOLT M10X125X1.25 | $3.50 | 1 |
| 22 | A00079-19-01 | FLANGE BOLT M10x30 | $2.50 | 2 |
| 23 | A00004-22-03 | FLANGE NUT M10x1.25 | $2.00 | 3 |
| 24 | A00002-21-01 | WASHER M10 | $2.00 | 2 |
| 25 | A00419-19-08 | CASE FLANGE BOLT M6X20 | $2.00 | 4 |
| 26 | A00418-19-08 | CASE FLANGE BOLT M6X16 | $2.00 | 3 |
