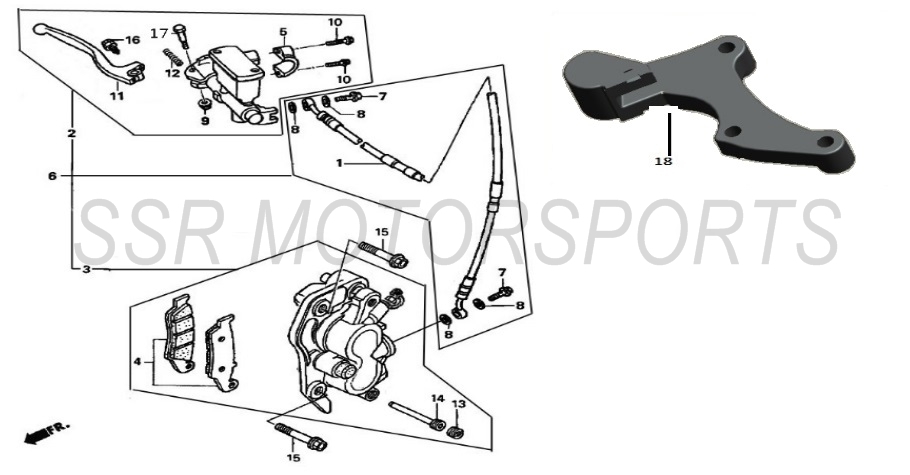

Front Brake System
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00076-04-00 | FRONT BRAKE HOSE NISSIN | $45.50 | 1 |
| 2 | A00077-04-00 | FRONT BRAKE MASTER CYLINDER ASSY NISSIN | $234.50 | 1 |
| 3 | A00078-04-00 | FRONT BRAKE CALIPER ASSY NISSIN | $187.30 | 1 |
| 4 | A00626-04-00 | FRONT BRAKE PAD SET NISSIN | $82.30 | 1 |
| 5 | A00646-04-00 | FRONT BRAKE MASTER CYLINDER HOLDER NISSIN | $21.00 | 1 |
| 6 | A00647-04-00 | FRONT BRAKE ASSY NISSIN | $470.80 | 1 |
| 7 | A00072-04-00 | BANJO BOLT | $2.50 | 2 |
| 8 | A00025-04-00 | SEALING WASHER | $2.00 | 4 |
| 9 | A00001-22-01 | NUT M6 | $2.00 | 1 |
| 10 | A00024-19-01 | FLANGE BOLT M6X22 | $2.00 | 2 |
| 11 | A00073-04-00 | FRONT BRAKE LEVER NISSIN | $35.00 | 1 |
| 12 | A00058-04-00 | BRAKE LEVER SPRING | $2.00 | 1 |
| 13 | A00075-04-00 | FRONT BRAKE PIN PLUG | $2.00 | 1 |
| 14 | A00076-04-01 | FRONT BRAKE PAD PIN | $2.50 | 1 |
| 15 | A00014-19-01 | FLANGE BOLT M8X40 | $2.50 | 2 |
| 16 | A00624-04-00 | ADJUSTER BOLT | $2.00 | 1 |
| 17 | A00625-04-00 | FRONT BRAKE LEVER PIVOT BOLT | $2.00 | 1 |
| 18 | A00027-01-00 | FRONT BRAKE ROTOR ADAPTER 270MM | $82.30 | 1 |
| 18 | A00028-01-00 | FRONT BRAKE ROTOR ADAPTER 290MM | $82.30 | 1 |
