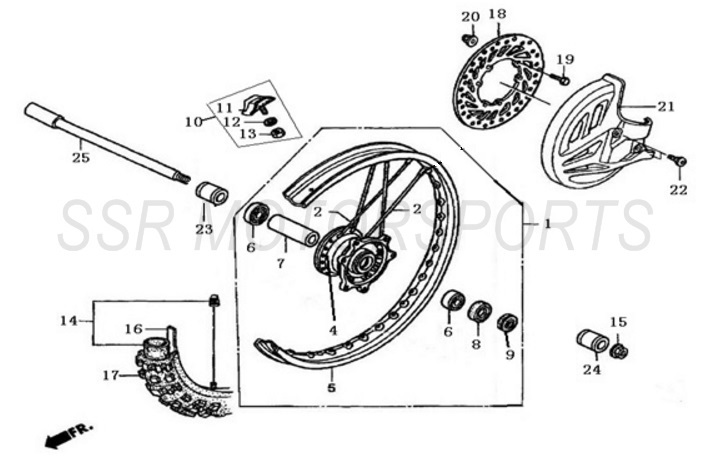

Front Wheel
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00059-18-01 | FRONT WHEEL ASSY 1.60-21 SILVER HUB / BLACK RIM | $554.80 | 1 |
| 2 | A00054-18-00 | FRONT SPOKE W/ NIPPLE 21 | $3.50 | 36 |
| 4 | A00115-18-00 | FRONT WHEEL HUB | $352.50 | 1 |
| 5 | A00116-18-00 | FRONT RIM 1.60-21 | $234.50 | 1 |
| 6 | A00038-28-00 | BEARING 6904-2RS | $35.00 | 2 |
| 7 | A00118-18-00 | FRONT WHEEL BEARING SPACER 20X26X71 | $33.30 | 1 |
| 9 | A00011-26-00 | SEAL 26X37X7 | $3.50 | 1 |
| 11 | A00065-18-00 | RIM LOCK 1.6 | $28.00 | 1 |
| 12 | A00060-21-01 | WASHER 8.4X16X1.6 | $2.00 | 1 |
| 13 | A00002-22-01 | NUT M8 | $2.00 | 1 |
| 14 | A00064-18-00 | INNERTUBE 3.00-21 (80/100-21) | $19.30 | 1 |
| 15 | A00007-22-03 | FLANGE LOCKNUT M16 | $4.40 | 1 |
| 16 | A00046-18-00 | RIM STRIP 21" | $8.00 | 1 |
| 17 | A00122-18-00 | FRONT TIRE 3.00-21 | $150.50 | 1 |
| 18 | A00556-04-00 | FRONT BRAKE ROTOR 240X3 | $59.50 | 1 |
| 19 | A00006-19-01 | FLANGE BOLT M6X20 | $2.00 | 6 |
| 20 | A00001-22-01 | NUT M6 | $2.00 | 6 |
| 21 | A00087-02-01 | FRONT BRAKE ROTOR COVER WHITE | $35.00 | 1 |
| 22 | A00125-18-00 | BOLT M6x15 | $2.00 | 2 |
| 23 | A00126-18-00 | FRONT RIGHT WHEEL SPACER 20X27X24.5 | $15.80 | 1 |
| 24 | A00057-18-00 | FRONT LEFT WHEEL SPACER 20X27X25.5 | $15.80 | 1 |
| 25 | A00056-18-00 | FRONT WHEEL AXLE M16X1.5X230 | $38.50 | 1 |
