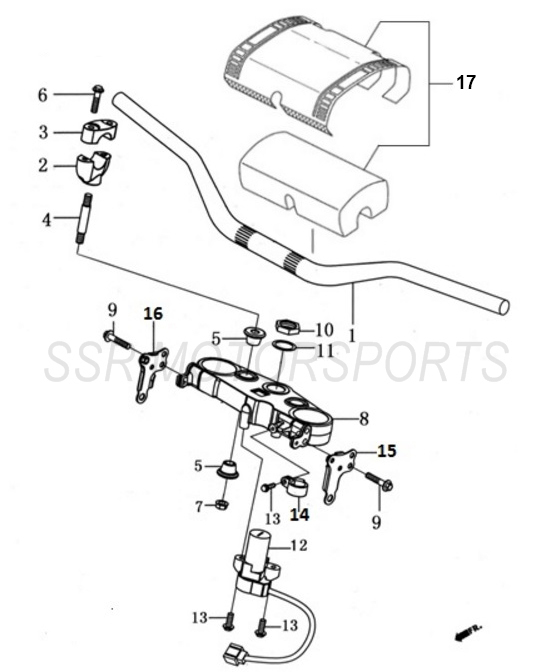

Handlebar
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00115-05-00 | HANDLEBAR 6 SERIES ALUMINUM | $176.80 | 1 |
| 2 | A00065-05-00 | LOWER HANDLEBAR CLAMP | $28.00 | 2 |
| 3 | A00062-05-00 | UPPER HANDLEBAR CLAMP | $28.00 | 2 |
| 4 | A00120-19-04 | STUD M10 | $8.00 | 2 |
| 5 | A00066-05-00 | RUBBER HANDLEBAR DAMPER | $3.50 | 4 |
| 6 | A00049-19-01 | FLANGE BOLT M8X35 | $2.50 | 4 |
| 7 | A00014-22-01 | NUT M10×1.25 | $2.00 | 2 |
| 8 | A00067-05-00 | UPPER TRIPLE CLAMP | $129.50 | 1 |
| 9 | A00014-19-01 | FLANGE BOLT M8X40 | $2.50 | 4 |
| 10 | A00345-22-01 | STEERING STEM NUT M26 | $8.00 | 1 |
| 11 | A00122-05-00 | WASHER 26.5X35X1 | $2.60 | 1 |
| 12 | A00062-08-01 | IGNITION SWITCH W/ 2 KEYS | $59.50 | 1 |
| 13 | A00418-19-02 | ALLEN BOLT M6X18 | $2.00 | 2 |
| 14 | A00123-05-00 | UPPER FRONT BRAKE HOSE GUIDE | $2.60 | 1 |
| 15 | A00124-05-00 | LEFT HEADLIGHT STAY | $8.80 | 1 |
| 16 | A00125-05-00 | RIGHT HEADLIGHT STAY | $8.80 | 1 |
| 17 | A00444-05-00 | HANDLEBAR PAD WITH COVER | $28.00 | 1 |
