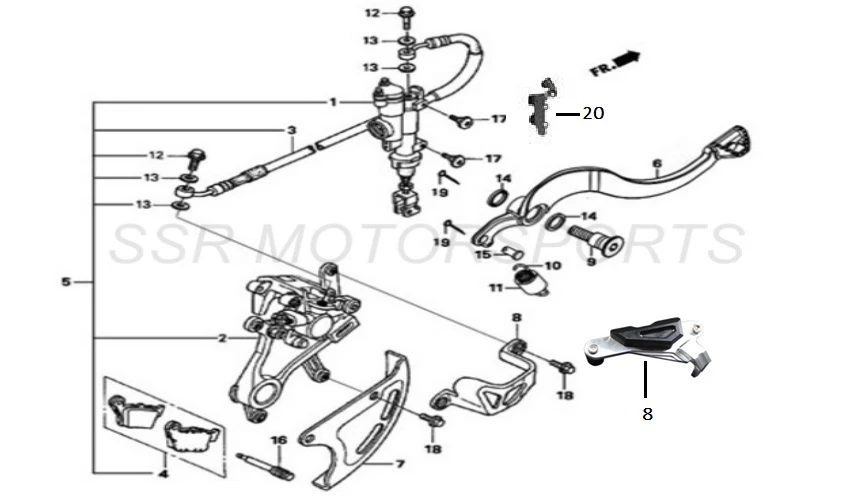

Rear Brake System
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00079-04-00 | REAR BRAKE MASTER CYLINDER ASSY NISSIN | $162.80 | 1 |
| 2 | A00080-04-00 | REAR BRAKE CALIPER ASSY NISSIN | $187.30 | 1 |
| 3 | A00081-04-00 | REAR BRAKE HOSE NISSIN | $45.50 | 1 |
| 4 | A00082-04-00 | REAR BRAKE PAD SET NISSIN | $82.30 | 1 |
| 5 | A00083-04-00 | REAR BRAKE ASSY NISSIN | $399.00 | 1 |
| 6 | A00084-04-00 | REAR BRAKE PEDAL | $63.00 | 1 |
| 7 | A00085-02-01 | REAR BRAKE ROTOR COVER | $14.00 | 1 |
| 8 | A00091-04-00 | REAR BRAKE CALIPER GUARD PLASTIC | $8.00 | 1 |
| 8 | A00012-01-00 | REAR BRAKE CALIPER GUARD ALUM - BLACK | $8.00 | 1 |
| 9 | A00085-04-00 | REAR BRAKE PEDAL PIVOT BOLT M10X43 | $2.50 | 1 |
| 10 | A00086-04-00 | REAR BRAKE PEDAL SPRING | $2.60 | 1 |
| 11 | A00087-04-00 | REAR BRAKE PEDAL SPRING RUBBER COVER | $2.00 | 1 |
| 12 | A00072-04-00 | BANJO BOLT | $2.50 | 2 |
| 12 | A00597-08-00 | REAR BRAKE LIGHT SWITCH | $38.50 | 1 |
| 13 | A00025-04-00 | SEALING WASHER | $2.00 | 4 |
| 14 | A00020-26-00 | DUST SEAL 15X20X2.5 | $3.50 | 2 |
| 15 | A00016-25-00 | REAR BRAKE PIN | $2.00 | 1 |
| 16 | A00074-04-00 | BRAKE PAD PIN | $2.00 | 1 |
| 17 | A00024-20-01 | SCREW M6x15 | $2.00 | 2 |
| 18 | A00031-19-01 | FLANGE BOLT M6X12 | $2.00 | 4 |
| 19 | A00006-25-01 | COTTER PIN 2.0X15 | $2.00 | 2 |
| 20 | A00018-01-00 | REAR BRAKE MASTER CYLINDER PROTECTOR BLACK | $8.00 | 1 |
