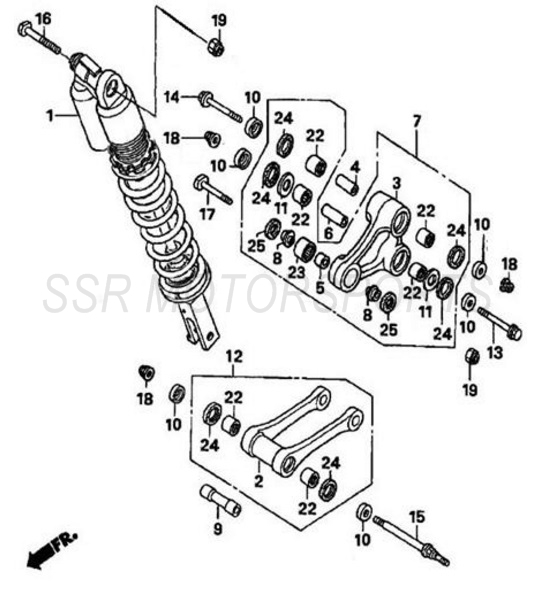

Rear Suspension
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00082-16-00 | REAR SHOCK ABSORBER FASTACE | $682.50 | 1 |
| 2 | A00083-16-00 | LOWER SHOCK LINK | $85.80 | 1 |
| 3 | A00084-16-00 | SUB-ARM CONNECTING LINK | $92.80 | 1 |
| 4 | A00085-16-00 | SUB-ARM SLEEVE 2 12X20X37 | $14.00 | 1 |
| 5 | A00086-16-00 | SUB-ARM SLEEVE 3 14X19X10.5 | $8.80 | 1 |
| 6 | A00087-16-00 | SUB-ARM SLEEVE 1 12X20X50 | $15.80 | 1 |
| 7 | A00088-16-00 | CONNECTING ROD SUB-ASSY | $176.80 | 1 |
| 8 | A00089-16-00 | SUB-ARM FRONT SPACER SLEEVE 10X7X21 | $3.50 | 2 |
| 9 | A00090-16-00 | CONNECTING ROD SLEEVE 12X20X77.5 | $21.00 | 1 |
| 10 | A00091-16-00 | CONNECTING ROD SPACER SLEEVE 12X25X5 | $2.60 | 6 |
| 11 | A00024-21-01 | WASHER 20X31X1.5 | $2.00 | 2 |
| 12 | A00092-16-00 | CONNECTING ROD ASSY | $106.80 | 1 |
| 13 | A00019-19-01 | FLANGE BOLT M12X95 | $6.10 | 1 |
| 14 | A00082-19-03 | FLANGE BOLT M12X85X1.25 | $4.40 | 1 |
| 15 | A00014-19-04 | STUD M12X173X1.25 | $8.80 | 1 |
| 16 | A00081-19-07 | SPECIAL BOLT M10X63X1.25 | $4.40 | 1 |
| 17 | A00005-19-07 | SPECIAL BOLT M10x45 | $3.50 | 1 |
| 18 | A00001-22-34 | FLANGE LOCKNUT M12 | $2.50 | 3 |
| 19 | A00004-22-34 | FLANGE LOCKNUT M10 | $2.50 | 2 |
| 22 | A00109-28-00 | NEEDLE BEARING 20X26X15 | $14.00 | 6 |
| 23 | A00110-28-00 | BEARING 6005 | $14.00 | 1 |
| 24 | A00022-26-00 | DUST SEAL KC25X32X4 | $3.50 | 6 |
| 25 | A00023-26-00 | DUST SEAL KC17.5X26X3 | $2.60 | 2 |
