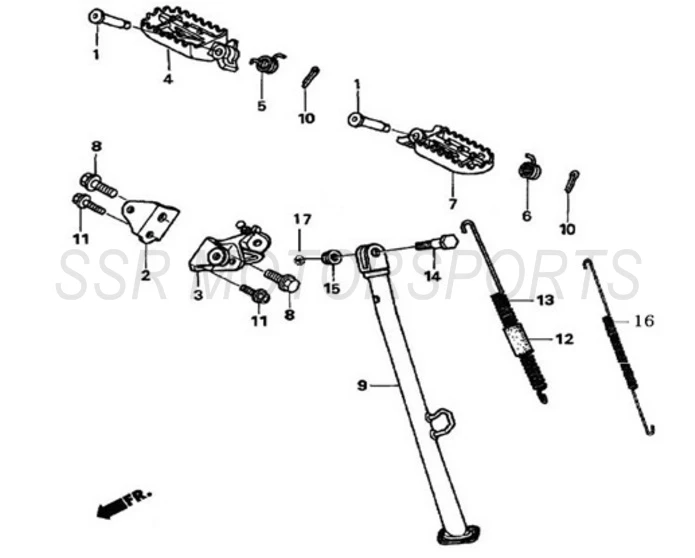

Side Stand / Foot Pegs
CLICK PARTS TO ADD
| NO. | PART # | DESCRIPTION | RETAIL | QTY |
|---|---|---|---|---|
| 1 | A00092-05-00 | FOOTPEG PIN | $2.60 | 2 |
| 2 | A00093-05-00 | LEFT FOOTPEG STAY | $56.00 | 1 |
| 3 | A00094-05-00 | RIGHT FOOTPEG STAY | $45.50 | 1 |
| 4 | A00095-05-00 | RIGHT FOOTPEG | $92.80 | 1 |
| 5 | A00096-05-00 | LEFT FOOTPEG SPRING | $2.00 | 1 |
| 6 | A00097-05-00 | RIGHT FOOTPEG SPRING | $2.00 | 1 |
| 7 | A00098-05-00 | LEFT FOOTPEG | $92.80 | 1 |
| 8 | A00056-19-03 | HEX BOLT M12X30 | $2.50 | 2 |
| 9 | A00099-05-00 | SIDE STAND | $99.80 | 1 |
| 10 | A00006-25-01 | COTTER PIN 2.0X15 | $2.00 | 2 |
| 11 | A00041-19-01 | FLANGE BOLT M8X30 | $2.00 | 2 |
| 12 | A00100-05-00 | SIDE STAND SPRING RUBBER COVER | $2.60 | 1 |
| 13 | A00101-05-00 | OUTER SIDE STAND SPRING | $8.00 | 1 |
| 14 | A00102-05-00 | SIDE STAND PIVOT BOLT M10x35 | $3.50 | 1 |
| 15 | A00004-22-03 | FLANGE NUT M10x1.25 | $2.00 | 1 |
| 16 | A00103-05-00 | INNER SIDE STAND SPRING | $4.40 | 1 |
| 17 | A00005-22-04 | FLANGE LOCKNUT M6 | $2.00 | 1 |
