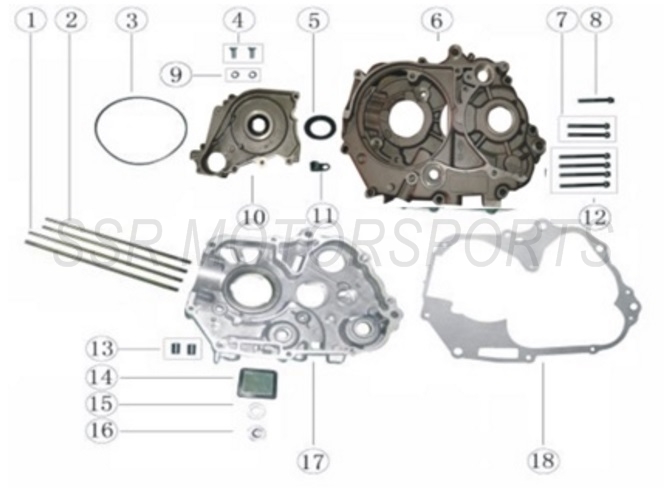

Crankcase
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00128-19-04 | CYLINDER STUD B M6X196MM | $8.80 | 2 |
| 2 | A00129-19-04 | CYLINDER STUD A M6X188MM | $8.80 | 2 |
| 3 | A00093-27-00 | O-RING 116.8x2 | $8.80 | 1 |
| 4 | A00003-20-12 | CS PHILLIPS BOLT M6X16 | $2.00 | 1 |
| 5 | A00059-26-00 | OIL SEAL 30X42X4.5 | $4.40 | 1 |
| 6 | A02503-09-00 | LEFT CRANKCASE HALF | $108.50 | 1 |
| 7 | A00429-19-08 | CASE FLANGE BOLT M6X60 | $2.50 | 2 |
| 8 | A00427-19-08 | CASE FLANGE BOLT M6X45 | $2.00 | 1 |
| 9 | A00012-27-00 | O-RING 6.5X1.9 | $2.00 | 2 |
| 10 | A02504-09-00 | STARTER MOTOR BRACKET | $31.50 | 1 |
| 11 | A01310-09-00 | COIL WIRE RETAINER | $2.00 | 2 |
| 12 | A00430-19-08 | CASE FLANGE BOLT M6X65 | $2.50 | 4 |
| 13 | A00002-23-00 | DOWEL PIN M10X14 | $2.00 | 2 |
| 14 | A01098-09-00 | OIL SCREEN | $10.50 | 1 |
| 15 | A00012-21-04 | CRUSH WASHER 12X20X1.5 | $2.00 | 1 |
| 16 | A01102-09-00 | OIL DRAIN BOLT M12 | $4.40 | 1 |
| 17 | A02505-09-00 | RIGHT CRANKCASE HALF | $101.50 | 1 |
| 18 | A00122-13-00 | CENTER CASE GASKET | $15.80 | 1 |
