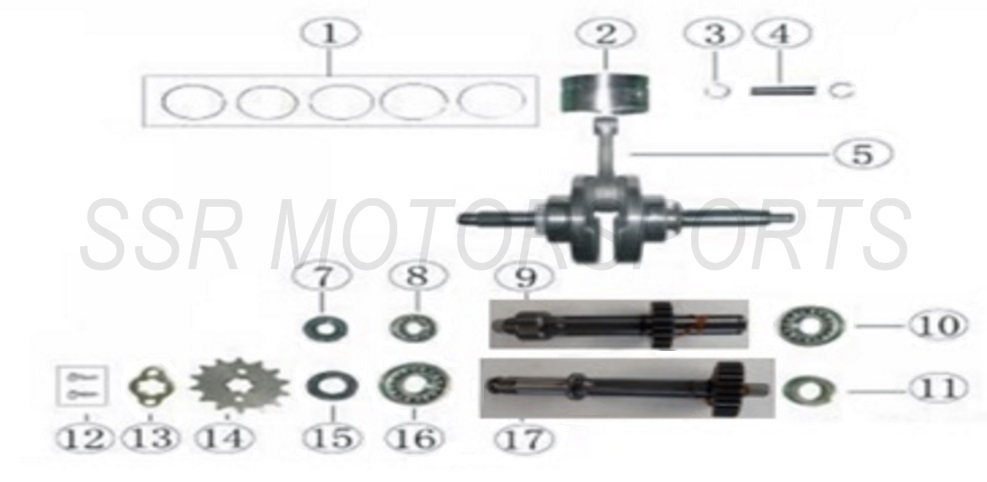

Crankshaft & Transmission
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A02825-09-00 | PISTON RING SET SR70/C/AUTO | $36.80 | 1 |
| 2 | A02826-09-00 | PISTON SR70/C/AUTO | $36.80 | 1 |
| 3 | A02827-09-00 | CIRCLIP SR70/C/AUTO | $2.00 | 2 |
| 4 | A02828-09-00 | PISTON PIN SR70/C/AUTO | $6.10 | 1 |
| 5 | A02829-09-00 | CRANKSHAFT ASSY SR70AUTO | $91.00 | 1 |
| 7 | A00216-17-00 | WASHER | $2.00 | 1 |
| 8 | A00003-28-00 | BEARING 6001 | $8.80 | 1 |
| 9 | A00390-17-00 | MAIN SHAFT ASSY | $92.80 | 1 |
| 11 | A00005-28-00 | BEARING 6201 | $8.80 | 1 |
| 12 | A00015-19-03 | HEX BOLT M6X10 | $2.00 | 2 |
| 13 | A00214-17-00 | SPROCKET RETAINER PLATE | $4.40 | 1 |
| 14 | A00307-07-00 | COUNTERSHAFT SPROCKET 14T | $15.80 | 1 |
| 15 | A00001-26-00 | OIL SEAL 17X29X5 | $4.40 | 1 |
| 16 | A00008-28-00 | BEARING 6203 | $31.50 | 1 |
| 17 | A00391-07-00 | COUNTER SHAFT ASSY | $92.80 | 1 |
| 18 | A02824-09-00 | PISTON KIT #1,2,3,4 | $75.30 | 1 |
