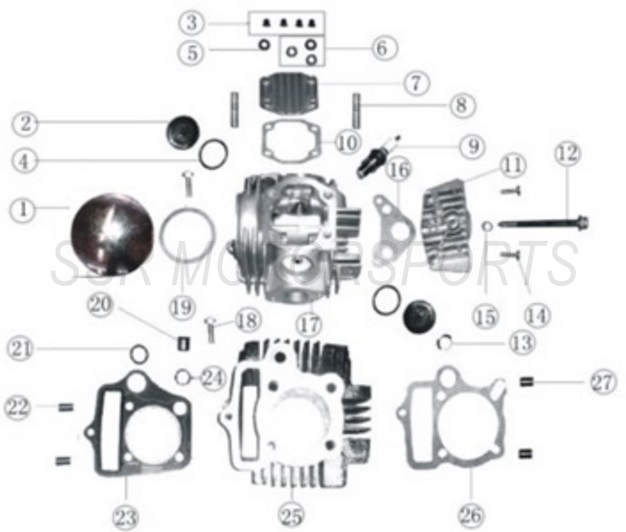

Cylinder Head And Cylinder
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A01173-09-00 | LEFT CYLINDER HEAD COVER CHROME | $21.00 | 1 |
| 2 | A01174-09-00 | TAPPET COVER CHROME | $8.80 | 2 |
| 3 | A00003-22-36 | FLANGE CAP NUT M6 | $2.00 | 4 |
| 4 | A00004-27-00 | O-RING 30.8X3.2 | $3.50 | 2 |
| 5 | A00272-21-01 | COPPER WASHER 6X13X2 | $2.00 | 1 |
| 6 | A00007-21-01 | WASHER M6X18X1.5 - BLACK | $2.00 | 3 |
| 7 | A02928-09-00 | CYLINDER HEAD COVER | $24.50 | 1 |
| 8 | A00001-19-04 | STUD M6X32 | $2.00 | 2 |
| 9 | C7HSA | SPARK PLUG SUB FOR: TORCH A7TC | $8.80 | 1 |
| 10 | A00127-13-00 | CYLINDER HEAD COVER GASKET | $8.80 | 1 |
| 11 | A02931-09-00 | RIGHT CYLINDER HEAD COVER | $21.00 | 1 |
| 12 | A00439-19-07 | TIMING COVER FLANGE BOLT M6x110 | $2.60 | 1 |
| 13 | A00009-27-00 | O-RING 11.5X2.5 | $2.00 | 1 |
| 14 | A00419-19-08 | CASE FLANGE BOLT M6X20 | $2.00 | 2 |
| 15 | A01177-09-00 | ALUMINUM WASHER M6 | $2.00 | 1 |
| 16 | A00128-13-00 | SUPERSEDED TO : A00233-13-00 | $8.80 | 1 |
| 17 | A02764-09-00 | CYLINDER HEAD ASSY W/ VALVES | $127.80 | 1 |
| 18 | A00002-19-03 | BOLT M6X23 - HEX / PHILLIPS | $2.00 | 2 |
| 19 | A00112-13-00 | LEFT CYLINDER HEAD COVER GASKET | $8.80 | 1 |
| 21 | A00008-27-00 | O-RING 14.5X18.5X2.4 | $2.00 | 1 |
| 22 | A00001-23-00 | DOWEL PIN M8X14 | $2.00 | 1 |
| 22A | A00118-23-00 | SPECIAL PIN 8X11 | $2.60 | 1 |
| 23 | A00130-13-00 | CYLINDER HEAD GASKET | $12.30 | 1 |
| 24 | A00112-21-01 | O-RING 8X10.8X1.5 | $2.00 | 1 |
| 25 | A02717-09-00 | CYLINDER | $117.30 | 1 |
| 26 | A00260-13-00 | CYLINDER BASE GASKET | $12.30 | 1 |
| 27 | A00003-23-00 | DOWEL PIN M8X12 | $2.00 | 2 |
