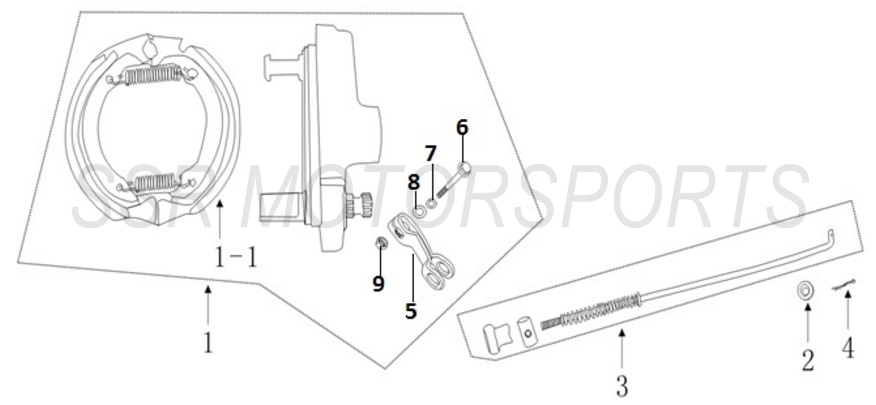

NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | A00489-04-00 | FRONT/REAR BRAKE DRUM ASSY | 1 | Assy. | $56.00 | |
1-1 | A00490-04-00 | DRUM BRAKE SHOE SET | DB70 | 1 | Set | $21.00 |
1 - 2 | A00493-04-00 | BRAKE DRUM ASSY LESS SHOES | 1 | Assy. | $36.00 | |
2 | A00063-21-01 | WASHER | 2X20 | 1 | Pc. | $1.50 |
3 | A00495-04-00 | REAR BRAKE ROD W/ SPRING + NUT | 1 | Assy. | $18.00 | |
4 | A00018-28-01 | COTTER PIN | 1 | Pc. | $1.50 | |
5 | A00492-04-00 | ACTUATOR ARM | 1 | Pc. | $8.00 | |
6 | A00443-19-03 | ACTUATOR BOLT | M5X30 | 1 | Pc. | $1.50 |
7 | A00003-21-02 | LOCK WASHER | M5 | 1 | Pc. | $1.50 |
8 | A00003-21-01 | WASHER | M5 | 1 | Pc. | $1.50 |
9 | A00007-22-01 | NUT | M5 | 1 | Pc. | $1.50 |
