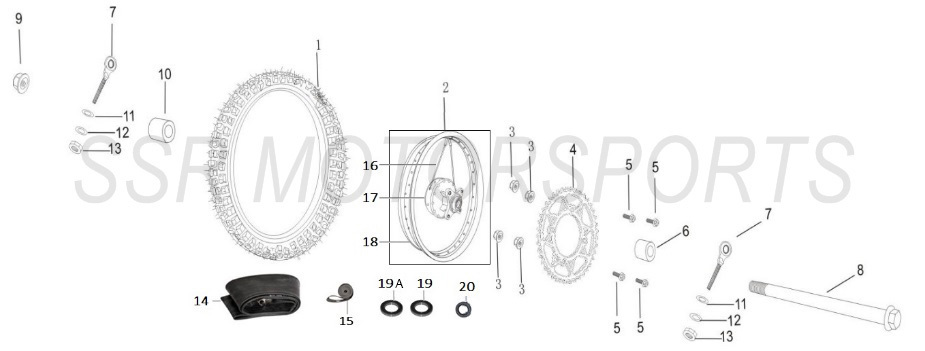

Rear Wheel
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00322-18-00 | FRONT/REAR TIRE 2.50-10 | $29.80 | 1 |
| 2 | A00451-18-00 | REAR WHEEL ASSY (BLACK RIM WITH SILVER HUB) 1.4-10 (28 SPOKE) | $88.20 | 1 |
| 3 | A00001-22-04 | FLANGE LOCKNUT M8 | $2.00 | 4 |
| 4 | A00300-07-00 | REAR SPROCKET 37T | $24.50 | 1 |
| 5 | A00041-19-01 | FLANGE BOLT M8X30 | $2.00 | 4 |
| 6 | A00329-18-00 | LEFT REAR WHEEL SPACER 12X20XH6 | $6.10 | 1 |
| 7 | A00330-18-00 | CHAIN ADJUSTER M6X50 | $8.00 | 2 |
| 8 | A00331-18-00 | FRONT WHEEL AXLE 12X215X12X1.25MM | $12.30 | 1 |
| 9 | A00001-22-03 | FLANGE LOCKNUT M12 | $2.50 | 1 |
| 10 | A00333-18-00 | RIGHT REAR WHEEL SPACER 12X20XH19 | $6.10 | 1 |
| 11 | A00002-21-02 | LOCK WASHER M6 | $2.00 | 2 |
| 12 | A00017-21-01 | WASHER 6X12X1.5 | $2.00 | 2 |
| 13 | A00001-22-01 | NUT M6 | $2.00 | 2 |
| 14 | A00219-18-00 | INNER TUBE 2.50-10 | $15.80 | 1 |
| 15 | A00334-18-00 | RIM STRIP 10" | $6.10 | 1 |
| 16 | A00512-18-00 | FRONT/REAR SPOKES W/ NIPPLE SET (28PCS/SET) | $24.50 | 1 |
| 17 | A00405-18-00 | REAR WHEEL HUB | $64.80 | 1 |
| 19 | A00115-28-00 | WHEEL BEARING 6001RS | $6.10 | 1 |
| 19A | A00116-28-00 | WHEEL BEARING 6201RS | $6.10 | 1 |
| 20 | A00034-26-00 | DUST SEAL 20X32X5 | $2.60 | 1 |
