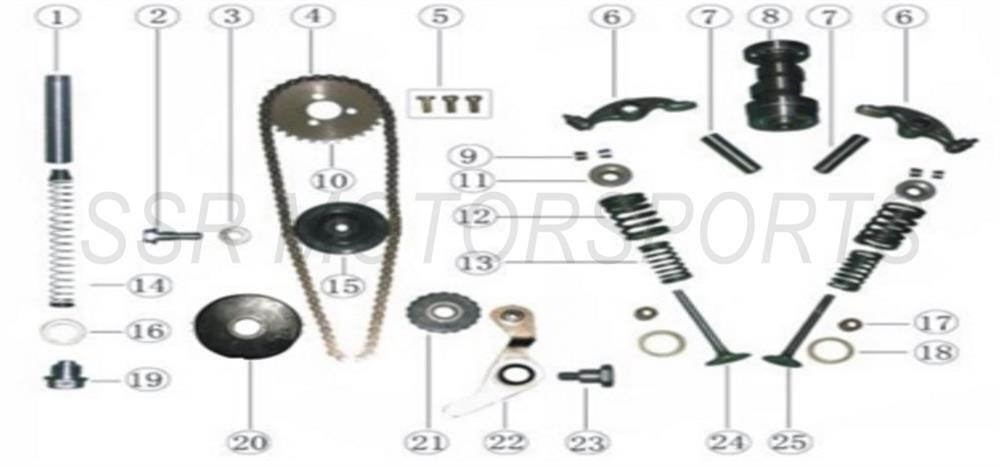

Valves and Camshaft
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A01323-09-00 | TENSIONER ROD | $8.00 | 1 |
| 2 | A01303-09-00 | ROLLER GUIDE BOLT | $2.00 | 1 |
| 3 | A00094-21-01 | WASHER M8X14X2 | $2.00 | 1 |
| 4 | A02442-09-00 | TIMING CHAIN 82L | $21.00 | 1 |
| 5 | A00025-19-03 | HEX BOLT M5X12 | $2.00 | 3 |
| 6 | A01187-09-00 | ROCKER ARM | $19.30 | 2 |
| 7 | A01188-09-00 | ROCKER ARM SHAFT | $6.10 | 2 |
| 8 | A01185-09-00 | CAMSHAFT | $75.30 | 1 |
| 9 | A01195-09-00 | COLLET | $2.50 | 4 |
| 10 | A01329-09-00 | CAMSHAFT SPROCKET 28T | $24.50 | 1 |
| 11 | A01193-09-00 | UPPER VALVE SPRING RETAINER | $8.00 | 2 |
| 12 | A01191-09-00 | OUTER VALVE SPRING | $6.10 | 2 |
| 13 | A01192-09-00 | INNER VALVE SPRING | $6.10 | 2 |
| 14 | A01322-09-00 | TENSIONER SPRING M0.6X111.7 | $2.60 | 1 |
| 15 | A01300-09-00 | CHAIN ROLLER RUBBER | $15.80 | 1 |
| 16 | A01307-09-00 | TENSIONER SEAL 14.2X20X1.5 | $2.00 | 1 |
| 17 | A02858-09-00 | VALVE STEM SEAL | $2.60 | 2 |
| 18 | A01194-09-00 | LOWER VALVE SPRING RETAINER | $8.00 | 2 |
| 19 | A02455-09-00 | TENSIONER BOLT M14X1.5 | $2.60 | 1 |
| 20 | A01304-09-00 | GUIDE SPROCKET RUBBER | $10.50 | 1 |
| 21 | A01257-09-00 | CAM CHAIN TENSIONER ROLLER RUBBER | $10.50 | 1 |
| 22 | A02444-09-00 | CAM CHAIN TENSIONER ARM | $8.80 | 1 |
| 23 | A01321-09-00 | CHAIN TENSIONER ARM BOLT | $2.50 | 1 |
| 24 | A01190-09-00 | EXHAUST VALVE | $14.00 | 1 |
| 25 | A01189-09-00 | INTAKE VALVE | $14.00 | 1 |
Selected Parts
