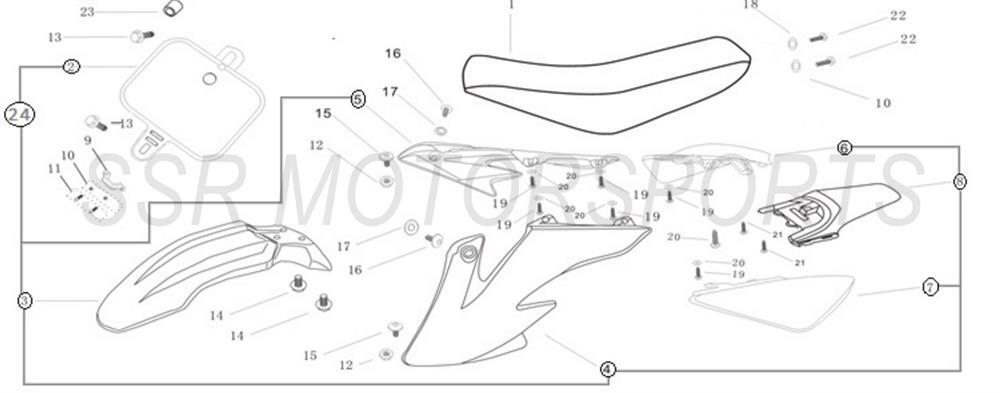

Body & Seat

Click parts on table to add
# Part # Description Price Qty
1 A00717-02-00 SEAT LOW $52.50 1
2 A00677-02-02 FRONT NUMBER PLATE BLACK $12.30 1
2 A00677-02-01 FRONT NUMBER PLATE WHITE $12.30 1
2 A00677-02-04 FRONT NUMBER PLATE GREEN $12.30 1
2 A00677-02-12 FRONT NUMBER PLATE BLUE $12.30 1
2 A00677-02-18 FRONT NUMBER PLATE RED $12.30 1
2 A00677-02-03 FRONT NUMBER PLATE ORANGE $12.30 1
3 A00678-02-02 FRONT FENDER BLACK $12.30 1
3 A00678-02-01 FRONT FENDER WHITE $12.30 1
3 A00678-02-04 FRONT FENDER GREEN $12.30 1
3 A00678-02-12 FRONT FENDER BLUE $12.30 1
3 A00678-02-18 FRONT FENDER RED $12.30 1
3 A00678-02-03 FRONT FENDER ORANGE $12.30 1
3 A00678-02-40 FRONT FENDER LIME GREEN $11.00 1
4 A00679-02-02 LEFT FUEL TANK SHROUD BLACK $12.30 1
5 A00680-02-02 RIGHT FUEL TANK SHROUD BLACK $12.30 1
6 A00681-02-02 RIGHT REAR NUMBER PLATE BLACK $12.30 1
7 A00682-02-02 LEFT REAR NUMBER PLATE BLACK $12.30 1
8 A00683-02-02 REAR FENDER BLACK $12.30 1
9 A00684-02-00 BRAKE HOSE GUIDE $2.00 1
10 A00348-22-04 LOCKNUT M4 $2.00 2
11 A00009-20-01 PHILLIPS BOLT M4X12 $2.00 2
12 A00093-22-03 FLANGE NUT M6 $2.00 2
13 A00002-19-01 FLANGE BOLT M6X16 $2.00 2
14 A00008-19-03 FLANGE BOLT M6X12 $2.00 2
15 A00003-20-01 SCREW M6X16 $2.00 2
16 A00010-19-29 PAN HEAD PHILLIPS BOLT M6X10 $2.00 2
17 A00016-21-01 RUBBER WASHER $2.00 2
18 A00011-21-01 WASHER M6 $2.00 2
19 A00010-20-03 ST SCREW 4.2X16 $2.00 7
20 A00017-21-01 WASHER 6X12 $2.00 6
21 A00002-20-03 ST SCREW 4.2X12 $2.00 2
22 A00419-19-08 CASE FLANGE BOLT M6X20 $2.00 2
23 A00685-02-00 SPACER $2.00 1
24 A00936-02-02 COMPLETE KIT BLACK $42.00 1
24 A00936-02-01 COMPLETE KIT WHITE $42.00 1
24 A00936-02-04 COMPLETE KIT GREEN $42.00 1
24 A00936-02-12 COMPLETE KIT BLUE $42.00 1
24 A00936-02-18 COMPLETE KIT RED $42.00 1
24 A00936-02-03 COMPLETE KIT ORANGE $42.00 1
25 A00009-20-03 ST SCREW 4.8X16 $2.00 1
