| NO. |
PART NUMBER |
DESCRIPTION |
SPECIFICATION |
UNIT |
QTY. |
RETAIL |

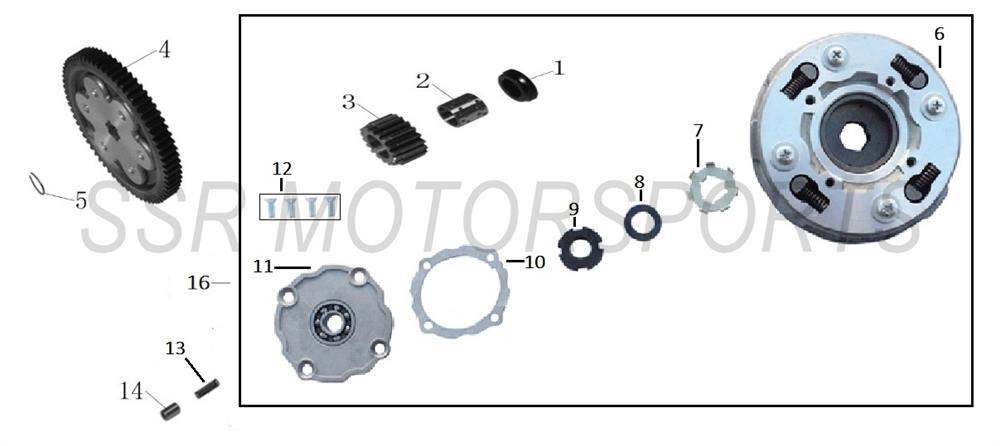

| 1 |
A01327-09-00 |
CLUTCH WASHER |
|
1 |
Pc. |
$3.50 |
| 2 |
A01271-09-00 |
PRIMARY DRIVE GEAR BUSHING |
|
1 |
Pc. |
$6.00 |
| 3 |
A01302-09-00 |
GEAR |
18T |
1 |
Pc. |
$18.00 |
| 4 |
A01301-09-00 |
GEAR |
67T |
1 |
Pc. |
$21.00 |
| 5 |
A00036-24-07 |
CIRCLIP |
|
1 |
Pc. |
$1.50 |
| 6 |
A01213-09-00 |
CLUTCH |
|
1 |
Pc. |
$76.00 |
| 7 |
A01283-09-00 |
TONGUE WASHER |
|
1 |
Pc. |
$2.50 |
| 8 |
A01284-09-00 |
PRIMARY DRIVE DISHED WASHER |
|
1 |
Pc. |
$1.50 |
| 9 |
A01282-09-00 |
PRIMARY DRIVE GEAR LOCKNUT |
M14X1 |
1 |
Pc. |
$2.50 |
| 10 |
A00308-13-00 |
CLUTCH LIFTER PLATE GASKET |
|
1 |
Pc. |
$8.00 |
| 11 |
A03025-09-00 |
CLUTCH LIFTER PLATE |
|
1 |
Pc. |
$18.00 |
| 12 |
A00007-20-01 |
SCREW |
M5X12 |
4 |
Set |
$1.50 |
| 13 |
A01280-09-00 |
SPRING |
|
1 |
Pc. |
$1.50 |
| 14 |
A01279-09-00 |
COLLAR |
|
1 |
Pc. |
$1.50 |
| 16 |
A02715-09-00 |
CLUTCH ASSEMBLY |
|
1 |
Assy. |
$98.00 |
