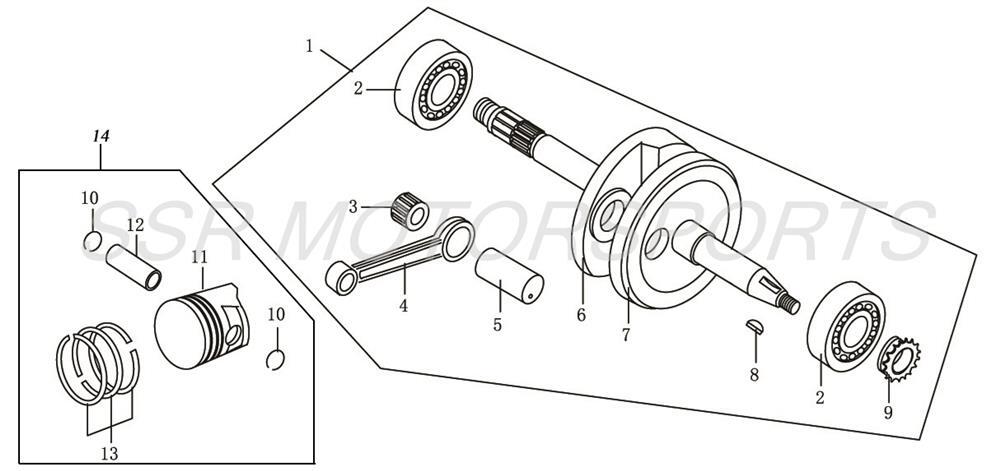

Crankshaft
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | UNIT | QTY. | RETAIL |
| 1 | A02808-09-00 | CRANKSHAFT ASSY | W/ BEARINGS | 1 | Assy. | $98.00 |
| 2 | A02819-09-00 | BEARING | 6304 | 2 | Pcs. | $11.00 |
| 3 | A02820-09-00 | CONNECTING ROD BEARING | 1 | Pc. | $8.00 | |
| 4 | A02813-09-00 | CONNECTING ROD | 1 | Pc. | $10.00 | |
| 5 | A02816-09-00 | CONNECTING ROD PIN | 1 | Pc. | $6.00 | |
| 6 | A02814-09-00 | RIGHT CRANKSHAFT HALF | 1 | Pc. | $33.00 | |
| 7 | A02815-09-00 | LEFT CRANKSHAFT HALF | 1 | Pc. | $33.00 | |
| 8 | A01113-09-00 | WOODRUFF KEY | 1 | Pc. | $1.50 | |
| 9 | A02817-09-00 | TIMING SPROCKET | 1 | Pc. | $8.00 | |
| 10 | A02827-09-00 | CIRCLIP | 2 | Pcs. | $1.50 | |
| 11 | A02826-09-00 | PISTON | 1 | Pc. | $32.00 | |
| 12 | A02828-09-00 | PISTON PIN | 1 | Pc. | $6.00 | |
| 13 | A02825-09-00 | PISTON RING SET | 1 | Set | $32.00 | |
| 14 | A02821-09-00 | PISTON RING I | 1 | Pc. | $11.00 | |
| 15 | A02822-09-00 | PISTON RING II | 1 | Pc. | $11.00 | |
| 16 | A02823-09-00 | PISTON OIL CONTROL RING | 1 | Pc. | $11.00 | |
| 14 | A02824-09-00 | PISTON KIT | 1 | Kit | $63.00 |
