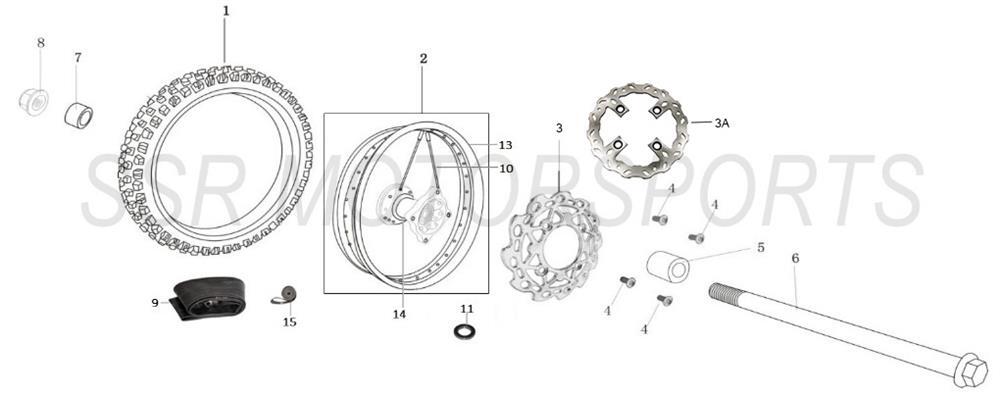

Front Wheel
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00322-18-00 | FRONT/REAR TIRE 2.50-10 | $29.80 | 1 |
| 2 | A00524-18-00 | FRONT WHEEL ASSY 1.4-10 (32 SPOKE) | $88.20 | 1 |
| 3 | A00473-04-00 | FRONT BRAKE ROTOR 190 16.5XH1.5 | $31.50 | 1 |
| 3A | A00682-04-00 | FRONT/REAR BRAKE ROTOR AFTER VIN ...HC100819 | $31.50 | 1 |
| 4 | A00034-19-10 | ROTOR BOLT M8X16 ALLEN | $2.00 | 4 |
| 5 | A00455-18-00 | FRONT LEFT AXLE SPACER 12X20XH28 | $6.10 | 1 |
| 6 | A00456-18-00 | FRONT/REAR AXLE 12X200XM12X1.25MM | $12.30 | 1 |
| 7 | A00457-18-00 | FRONT RIGHT AXLE SPACER 12X20XH19 | $6.10 | 1 |
| 8 | A00001-22-03 | FLANGE LOCKNUT M12 | $2.50 | 1 |
| 9 | A00219-18-00 | INNER TUBE 2.50-10 | $15.80 | 1 |
| 10 | A00454-18-00 | FRONT SPOKES W/ NIPPLE SET (32PCS/SET) 16 INNER/16 OUTER/32 NIPPLES | $24.50 | 1 |
| 11 | A00075-28-00 | BEARING 6301-2RS | $6.10 | 2 |
| 14 | A00399-18-00 | FRONT WHEEL HUB | $85.80 | 1 |
| 15 | A00334-18-00 | RIM STRIP 10" | $6.10 | 1 |
