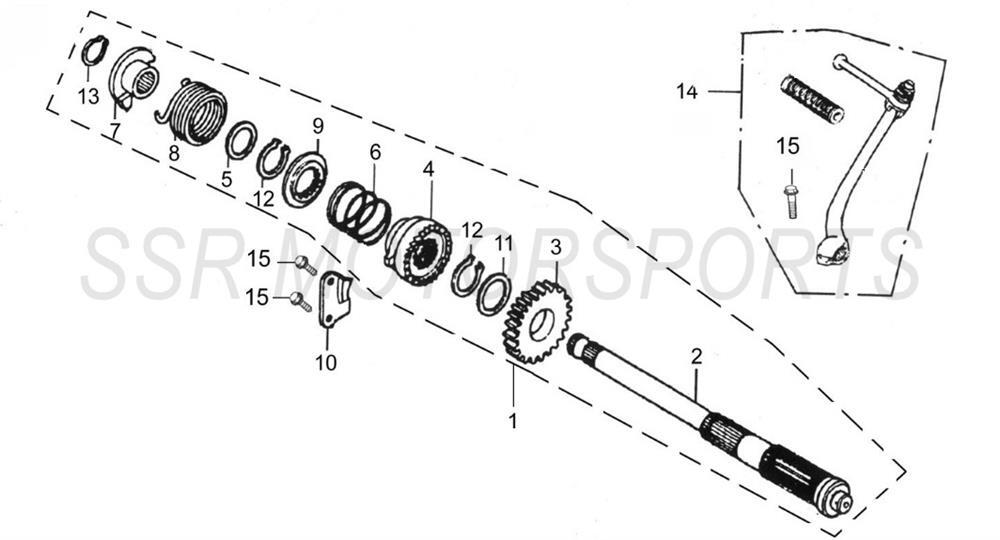

Kickstarter
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A01118-09-00 | KICKSTARTER SHAFT ASSY | $59.50 | 1 |
| 2 | A01120-09-00 | KICKSTARTER SHAFT | $19.30 | 1 |
| 3 | A01121-09-00 | KICKSTARTER GEAR | $21.00 | 1 |
| 4 | A01122-09-00 | RATCHET | $14.00 | 1 |
| 5 | A01123-09-00 | WASHER I 20.2X27X1 | $2.00 | 1 |
| 6 | A01124-09-00 | RATCHET SPRING | $2.50 | 1 |
| 7 | A01125-09-00 | RETURN SPRING SEAT | $4.40 | 1 |
| 8 | A01126-09-00 | KICKSTARTER RETURN SPRING | $2.60 | 1 |
| 9 | A01127-09-00 | RATCHET SPRING SEAT | $2.60 | 1 |
| 10 | A01128-09-00 | RETAINER PLATE | $4.40 | 1 |
| 11 | A01129-09-00 | WASHER II 17.2X24X1 | $2.00 | 1 |
| 12 | A01130-09-00 | CIRCLIP 18.5 | $2.00 | 2 |
| 13 | A01131-09-00 | CIRCLIP 15.5 | $2.00 | 1 |
| 14 | A00540-05-00 | KICKSTARTER LEVER ASSY SHORT | $24.50 | 1 |
| 15 | A00047-19-03 | HEX BOLT M6X20 | $2.00 | 3 |
