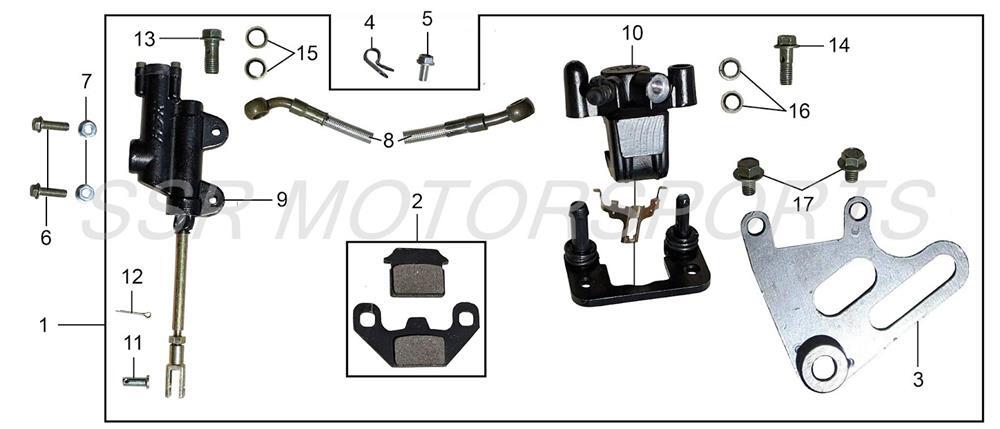

Rear Brake System
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00529-04-00 | REAR BRAKE ASSY L=470 | $105.00 | 1 |
| 2 | A00469-04-00 | REAR BRAKE PAD SET | $21.00 | 1 |
| 3 | A00522-04-00 | REAR BRAKE CALIPER BRACKET | $26.30 | 1 |
| 4 | A00523-04-00 | BRAKE HOSE RETAINER | $2.50 | 1 |
| 5 | A00031-19-01 | FLANGE BOLT M6X12 | $2.00 | 1 |
| 6 | A00015-19-01 | FLANGE BOLT M8X20 S12 | $2.00 | 2 |
| 7 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK) | $2.00 | 2 |
| 8 | A00593-04-00 | REAR BRAKE HOSE L=470 | $24.50 | 1 |
| 9 | A00583-04-00 | REAR BRAKE MASTER CYLINDER ASSY | $91.00 | 1 |
| 10 | A00584-04-00 | REAR BRAKE CALIPER | $101.50 | 1 |
| 11 | A00417-04-00 | REAR BRAKE PIN | $2.00 | 1 |
| 12 | A00007-25-01 | COTTER PIN 1.5X16 | $2.00 | 1 |
| 13 | A00688-04-00 | BANJO BOLT M10X22 | $2.50 | 1 |
| 14 | A00675-04-00 | BANJO BOLT M8 | $2.50 | 1 |
| 15 | A00549-04-00 | SEALING WASHER M10 | $2.00 | 2 |
| 16 | A00676-04-00 | SEALING WASHER M8 | $2.00 | 2 |
| 17 | A00089-19-X1 | FLANGE BOLT M8X12 | $2.00 | 2 |
